HG PCD Dies Improve Your Production Efficiency Greatly !
High quality raw materials and complete production crafts bring long life time of HG PCD dies. Your production efficiency can be greatly improved. Moreover, reasonable design of the PCD dies’ inner geometry make your wire drawing process smoothly.
What is Polycrystalline Diamond (PCD )?
PCD is short for polycrystalline diamond, a kind of synthetic diamonds. Polycrystalline diamond manufacturers select high quality diamond powders with best shapes and purity then process the powders under high temperature and high press. In this case, polycrystalline diamond hardness can reach to 8000HV, which is about 8-12 times as that of tungsten carbide. In the polycrystalline diamond manufacturing process, raw materials, temperature, press are all very important .
Polycrystalline diamond die (PCD die) is one of the widely used polycrystalline diamond tools. PCD dies manufacturers make the dies by PCD wire drawing die blanks and sintering powder, cases etc.
PCD Dies Made by Different PCD Blanks
HG PCD dies are made by different PCD blanks with different performances.

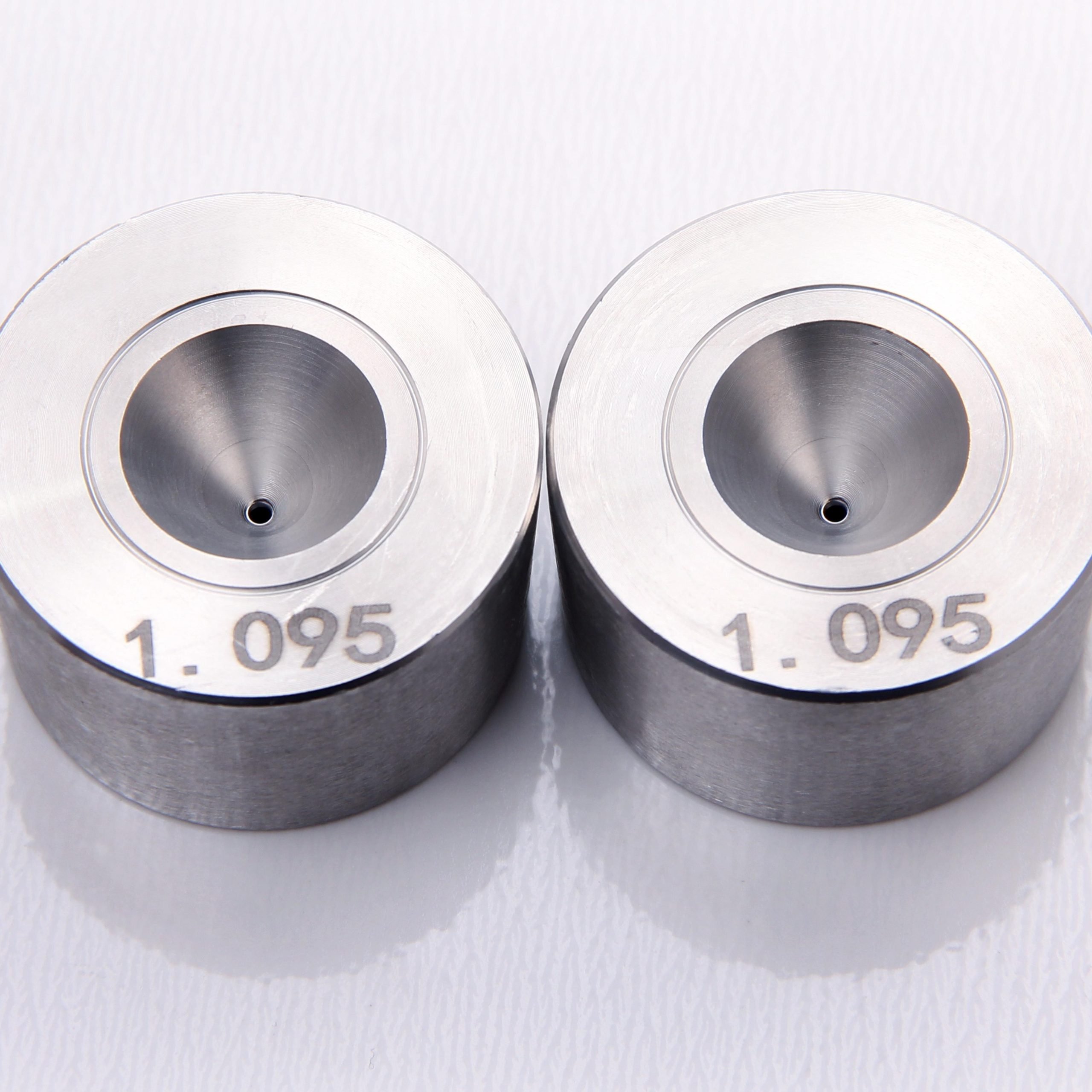

PCD Dies Made by Unsupported PCD BlanksPCD dies made by unsupported PCD blanks are usually used for drawing copper , aluminum wires etc in small diameters.

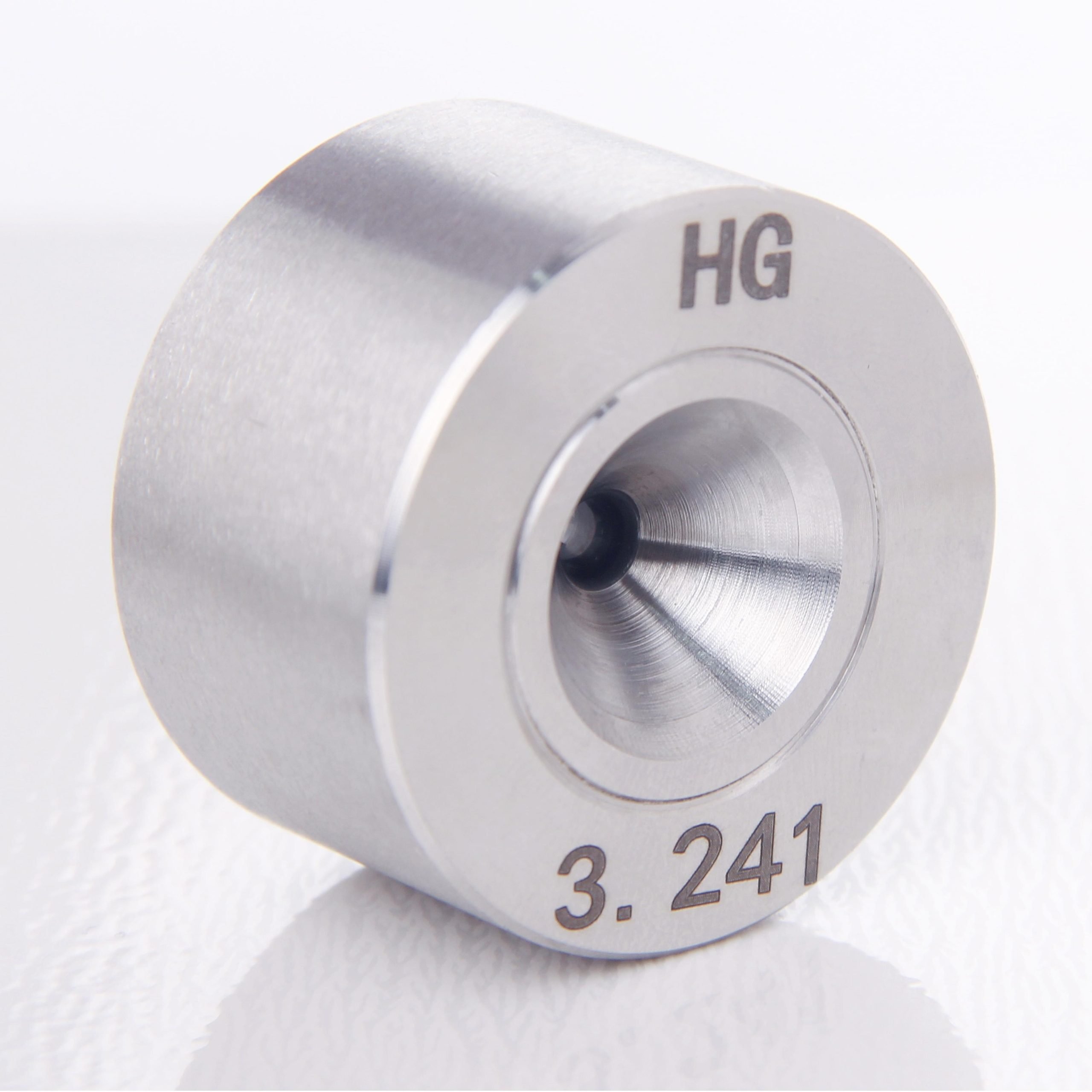

PCD Dies Made by Supported PCD BlanksPCD dies made by supported PCD blanks are usually used for drawing steel, nickel wires and other hard wires or big diameter wires.

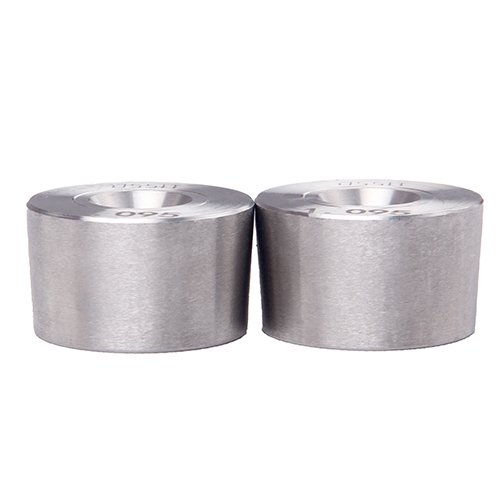

PCD Dies Made by Binderless PCD BlanksPCD dies made by binderless PCD blanks are usually used for drawing very hard wires, say tungsten, molybdenum wires.
PCD Dies for Different Applications
PCD dies are usually used for drawing ferrous & non ferrous wires, tubes & bars in round and other shapes.

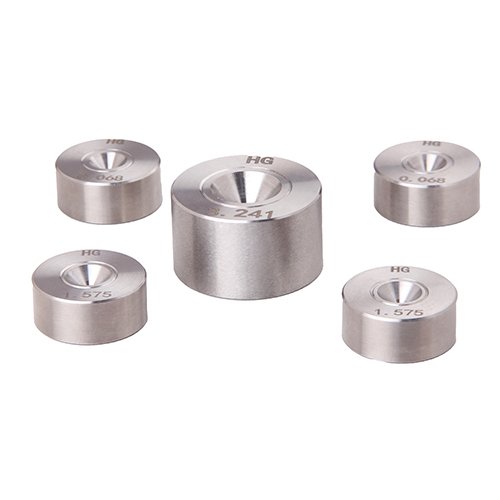

PCD Dies for WiresSmall diameters PCD dies, 0.1mm~5.0mm, are used to draw copper, aluminum, steel, stainless steel wires for different industries.

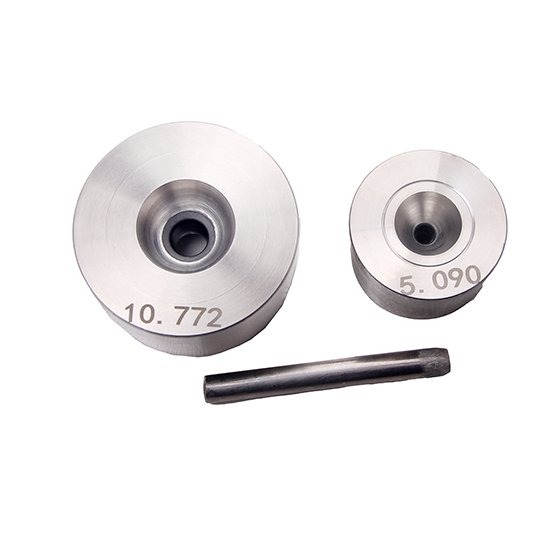

PCD Dies for TubesBigger PCD dies with diameters 6.0 mm~25.0mm, are used for drawing tubes in big diameters. The dies’ precision and service time are ensured.

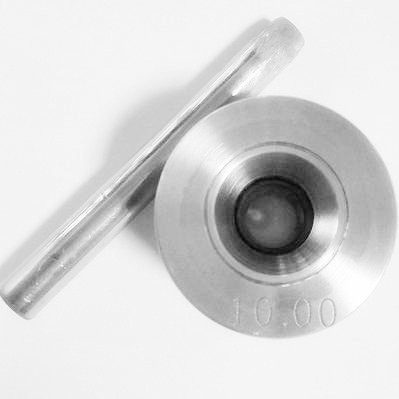

PCD Dies for BarsBars are hard so PCD dies for bars must have good strength. PCD dies manufacturers usually choose big size TC supported blanks to make the dies.
PCD Dies in Different Grain Sizes
Grain size is also an important specification for PCD blanks. It affects PCD die’s life time and wire surface.
Fine grain sizes1 micron and 3 micron PCD blanks are usually used to make PCD dies for very hard wires or wires require shiny surface.
Medium Grain SizePCD dies made by 5 micron, 10 micron PCD blanks are common. They are widely used to draw copper, aluminum ,silver, steel wires etc.
Big Grain Sizes25 micron and 50 micron are the biggest grain size of PCD wire drawing die blanks. PCD dies made by these grain sizes are very abrasive.
PCD Dies in Different Shapes
PCD dies’ inner hole shapes are made according to different shapes of the materials they will be used for.

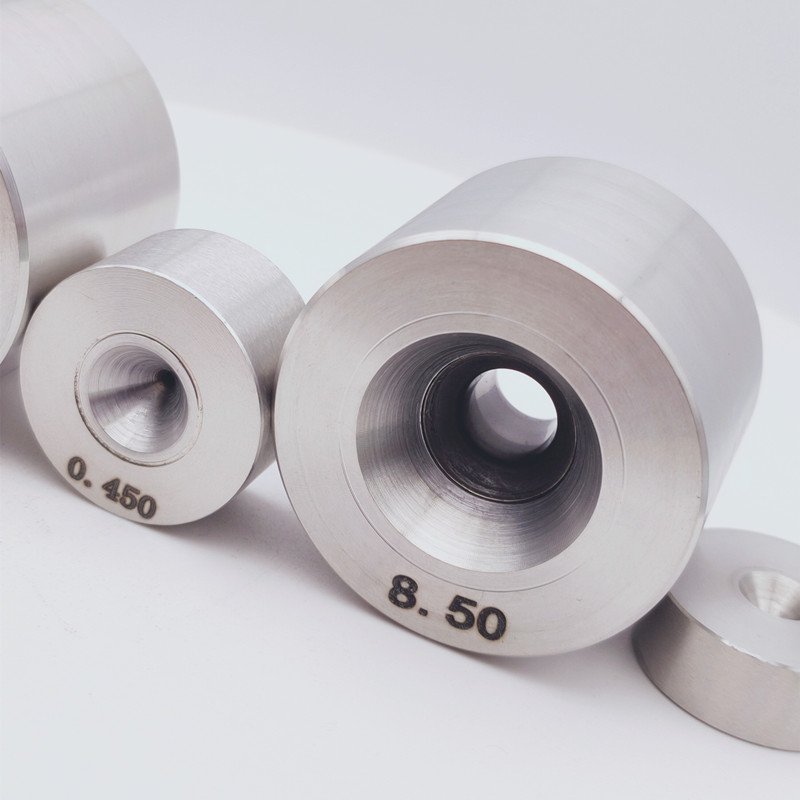

Round PCD DiesRond PCD die is the most common shape because majority of the wires, tubes, bars in market are round.

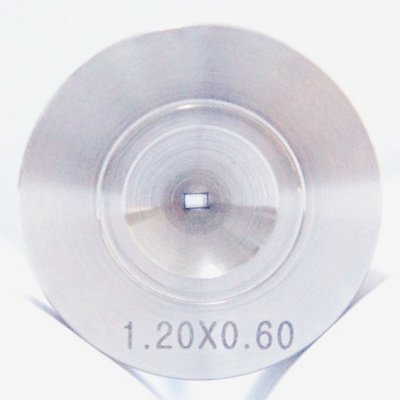

Shaped PCD DiesThere are also some shaped PCD dies, for example, square, rectangular, triangle, oval, half round and so on.

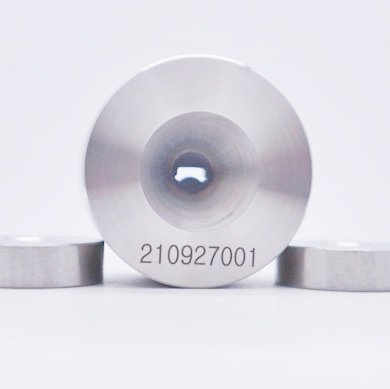

Complex Shaped PCD DiesSome materials’ shapes are irregular , very complex. They usually require customized PCD dies.
PCD Dies for Kinds of Wires

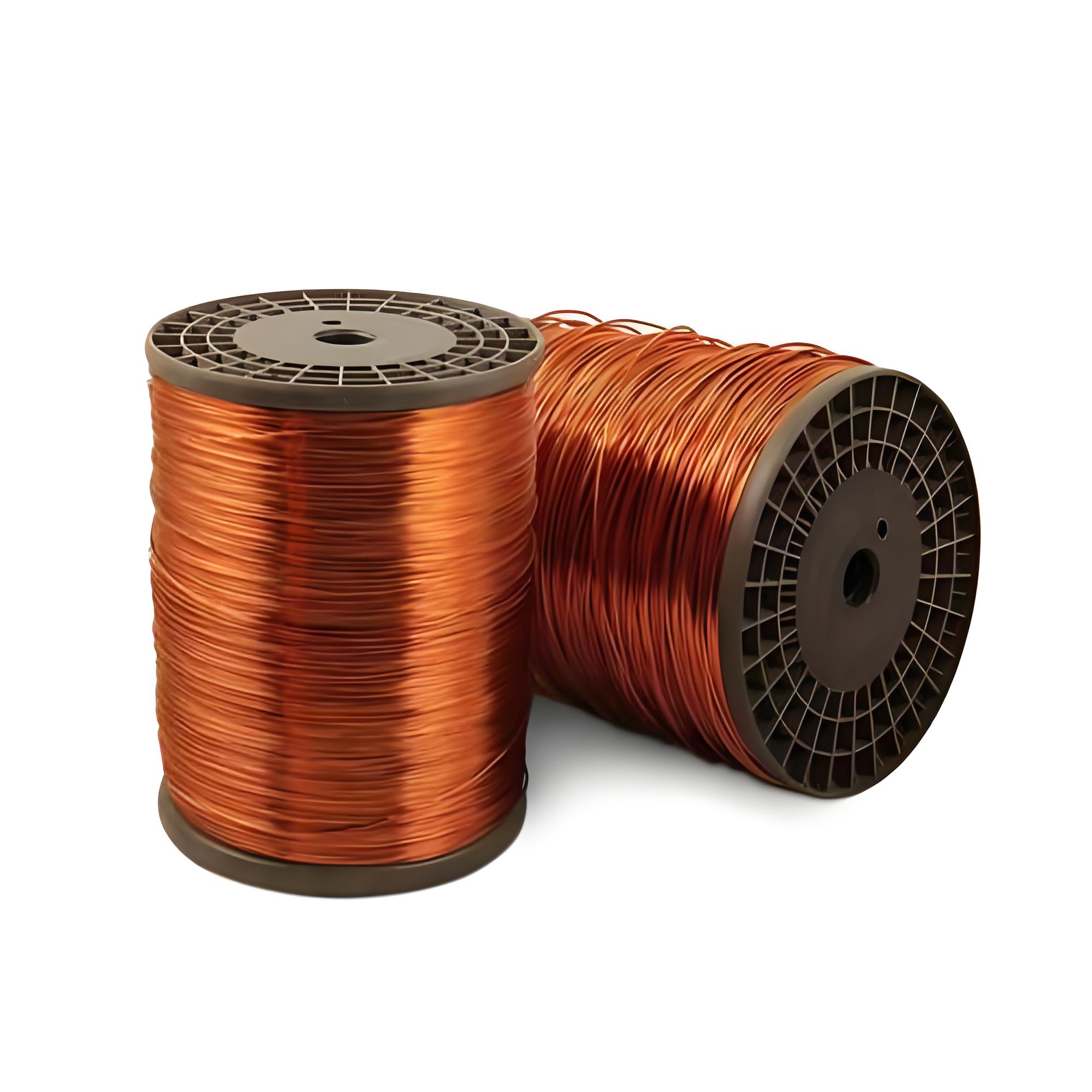

PCD Dies for Soft WiresNon ferrous wires, for example, Aluminum, copper, gold, silver and some alloy wires.

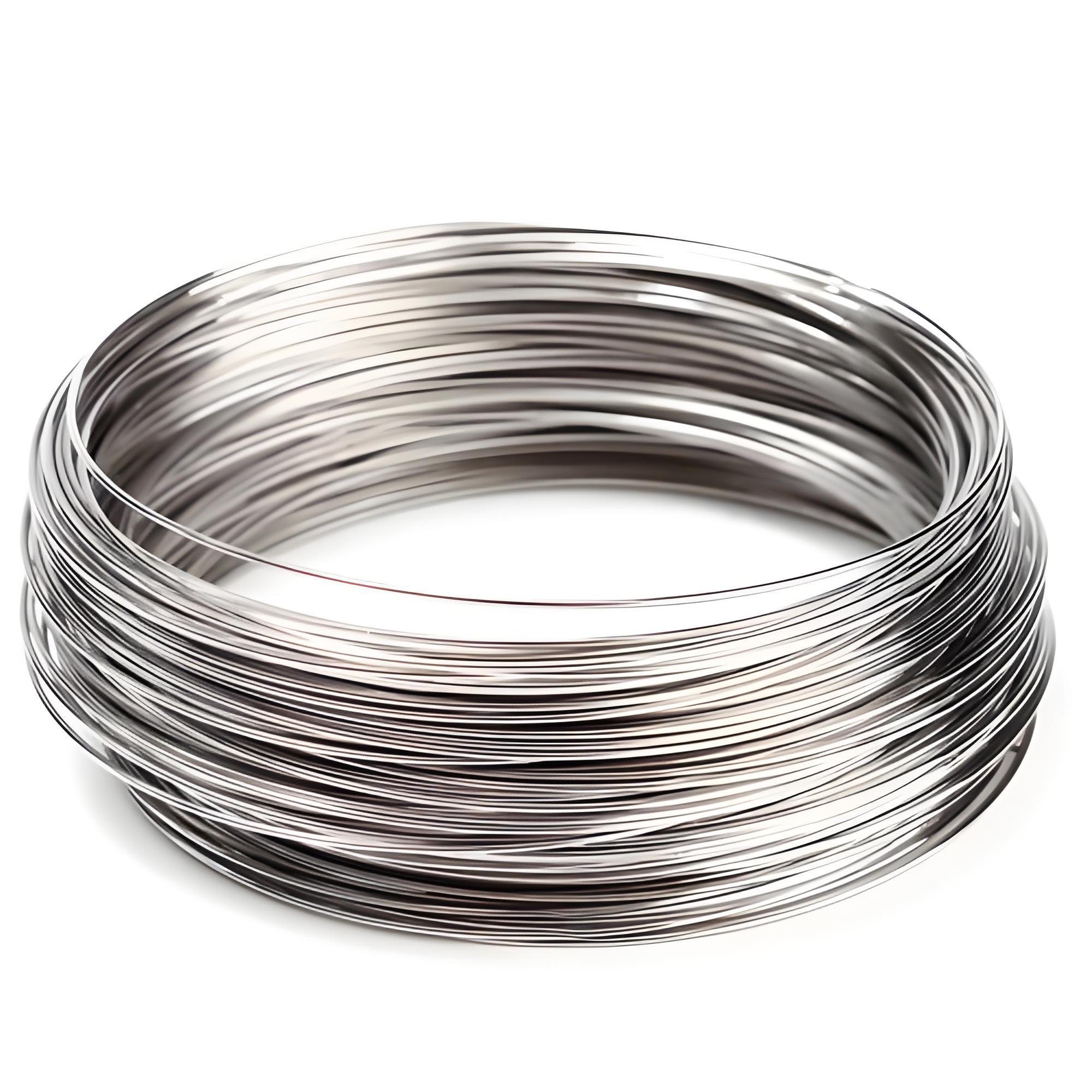

PCD Dies for Hard WiresFerrous wires, steel, stainless steel, high carbon wires and tungsten, chromium , molybdenum wires.

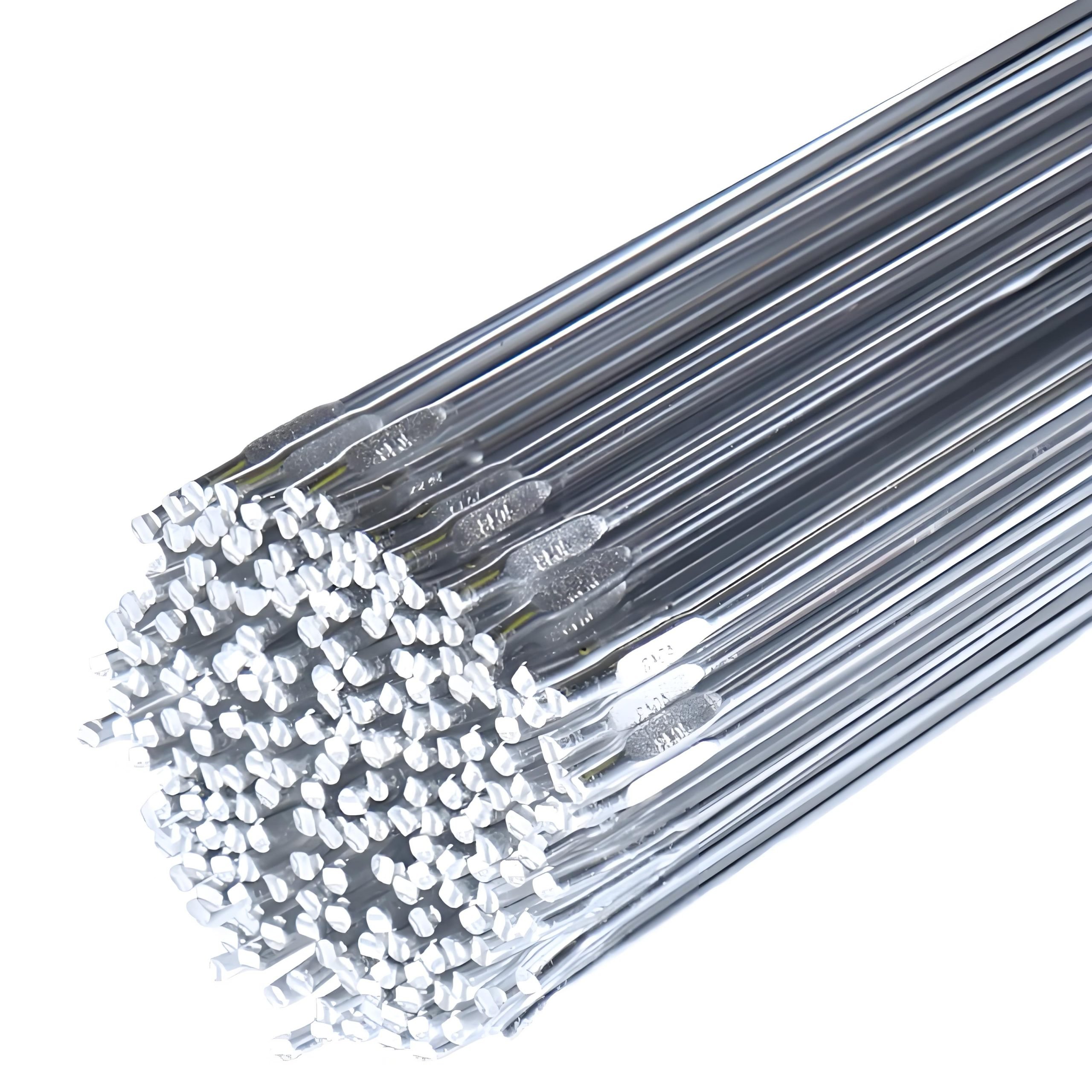

PCD Dies for Welding WiresPCD dies for welding wires must have well blended inner geometry to ensrue the smooth surface of the wires.

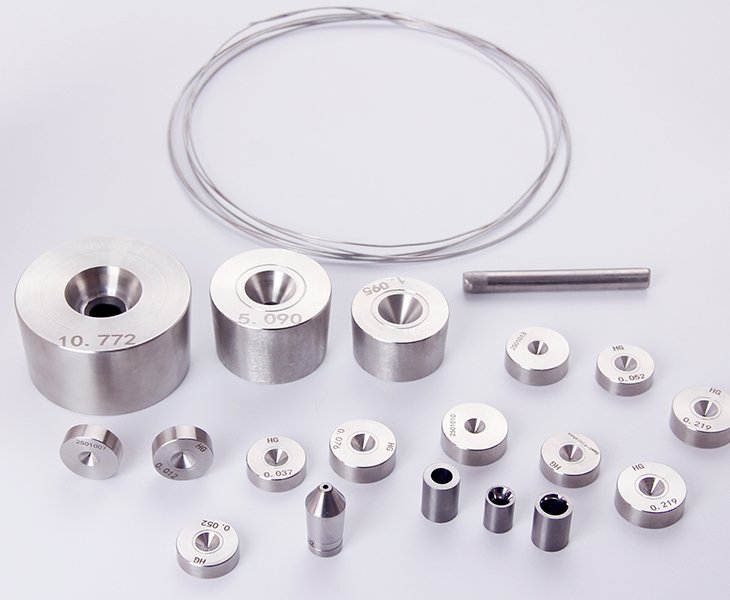

Full Ranges of Diameters
From 0.08mm to 27.00mm, you can choose any diameter you want from HG PCD dies .
PCD dies for soft wires or small sizes wires are usually made by self-supported PCD blanks. Thoese for hard wires or big sizes wires should be made by TC supported PCD blanks. If you have preferred PCD blanks supplier, we are also able to make PCD die by your designated blanks.
If you need big-sized PCD dies to draw tubes or bars, the biggest PCD dies we ever made for a customer is 26.54mm to draw SUS 316 stainless steel tubes.

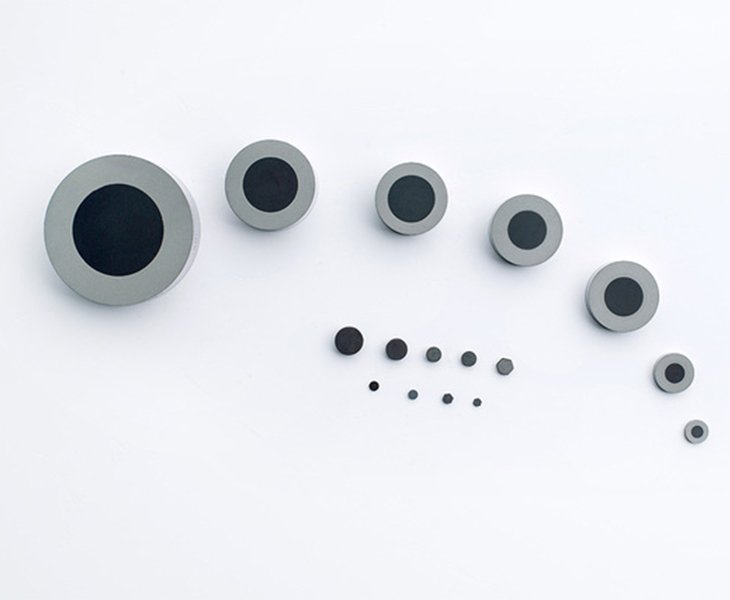

High Quality PCD Blanks
As the most important raw materials of PCD dies, quality of PCD blanks are critical. From inner micro structure to out tolerance, HG PCD dies choose the first class PCD blanks with high quality, which have stable performance in die making process.
From 1 micron to 50 micron, from binder to without binder, you can always find the correct PCD blanks for your PCD dies.
If you want to supply the PCD blanks for us to make PCD dies, that’s also welcomed.
Strict Quality Control
As a PCD dies manufacturer, it’s our first concern to ensure the dies’ specifications are all precise, which will decide the wires’ sizes, roundness and surface.

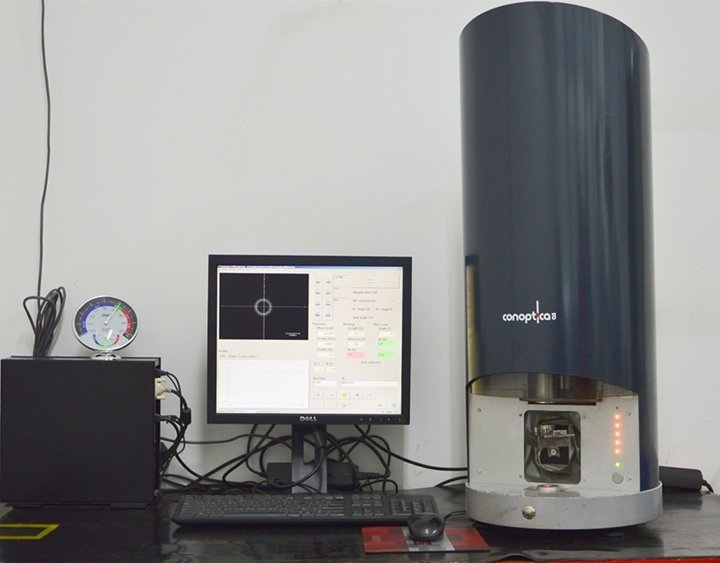

From selecting PCD wire drawing die blanks to finally inspecting the finished PCD dies, every production craft is operated under strict rules. HG PCD dies are 100% inspected by Conoptica, wires, laser scan micrometer as well as other inspecting instruments.
If needed, testing reports of the PCD dies are also available for you to see the specifications and inner profiles of the dies.

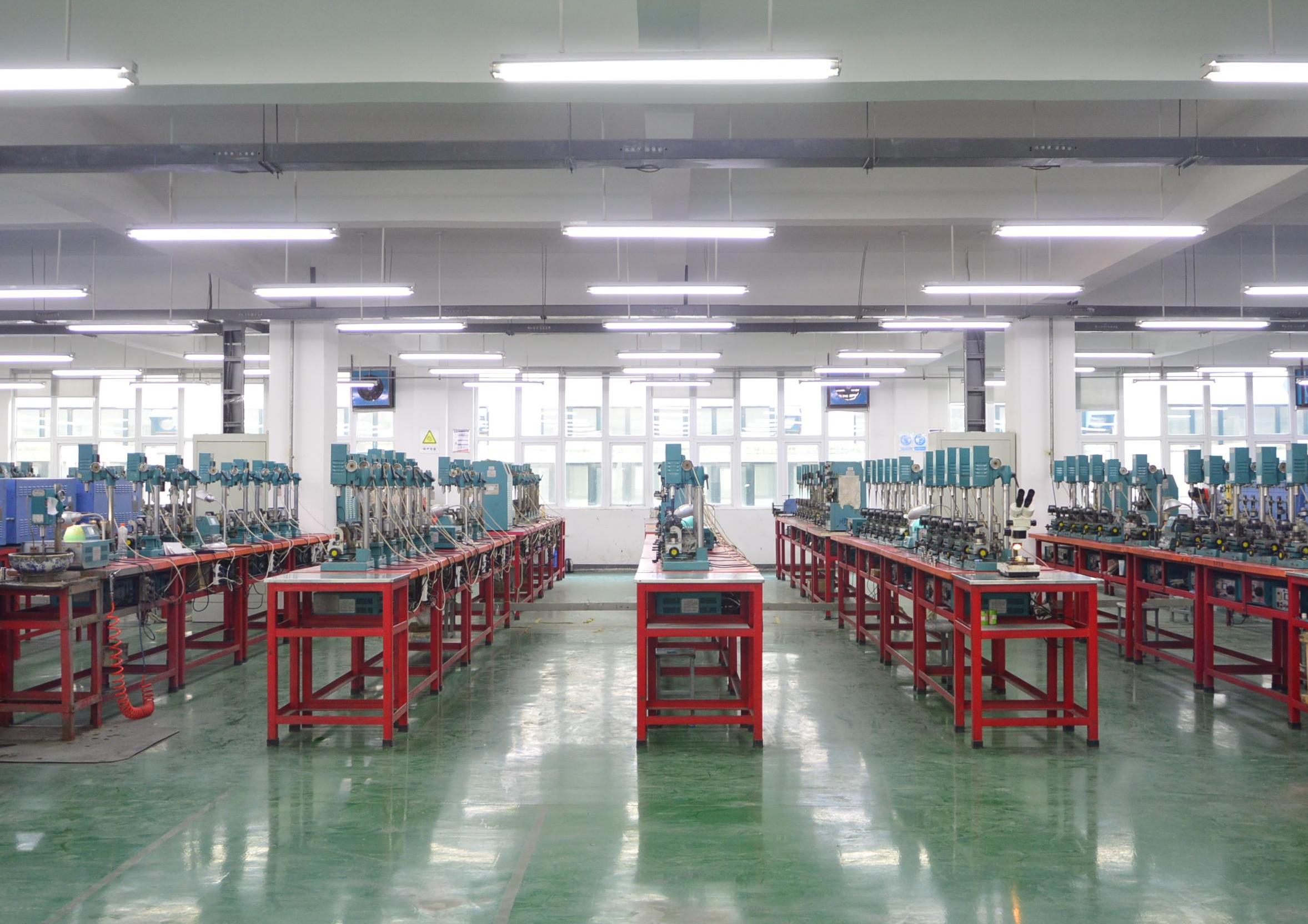

Supply Capacity
With maximum capacity 9000 pcs / month.Your PCD dies orders will be finished and delivered within expected time.
If you have some rush orders or requirements, we are able to make production adjustment to finish them in shortest time, which will enhance your production speed to some extent.

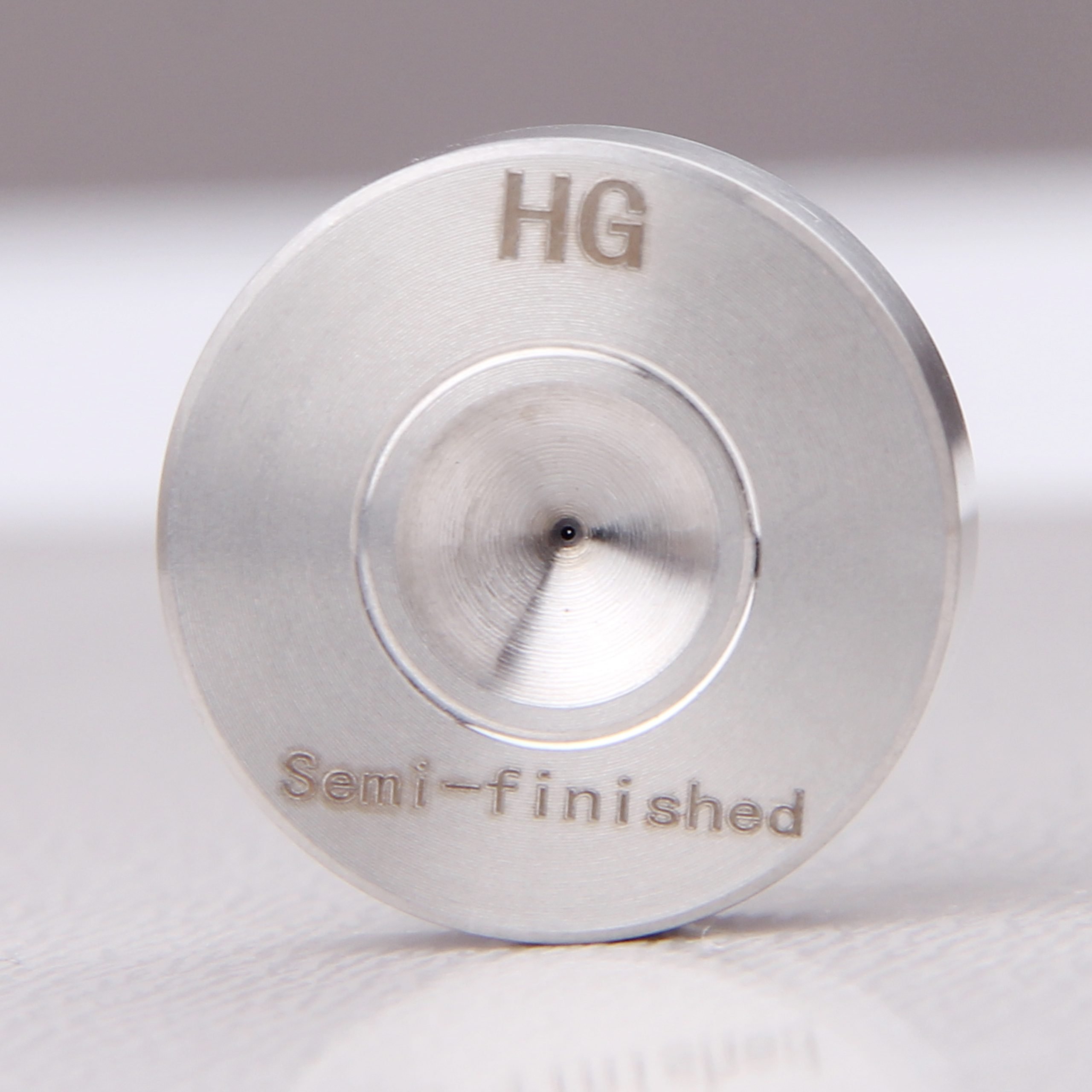

For some customers’ regular orders, if needed, we can prepare raw materials, say cases, PCD blanks, even semi-finished PCD dies, which also shorten the lead time to deliver the dies to you soon.

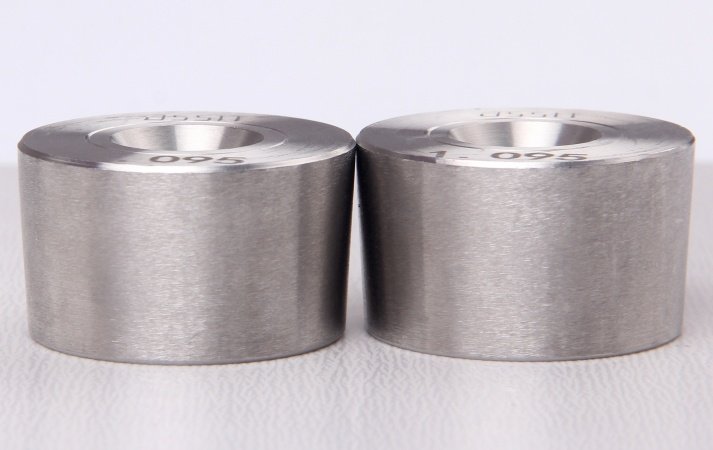

Customized PCD Dies
If you have some special requirements on the PCD blanks, inner geometry, cases or even production methods, our technicians will do their best to realize them. In addition, if there are no exact sizes, you can also inform your problems or detailed demands for us making customized PCD dies for you accordingly.
With more than 25 years’ industry experience and advanced machines, most of your demands on PCD dies can be met in HG.
How To Get Your Customized PCD Dies ?
The PCD dies can be customized from raw materials to production crafts, from innet geometry to out appearance.

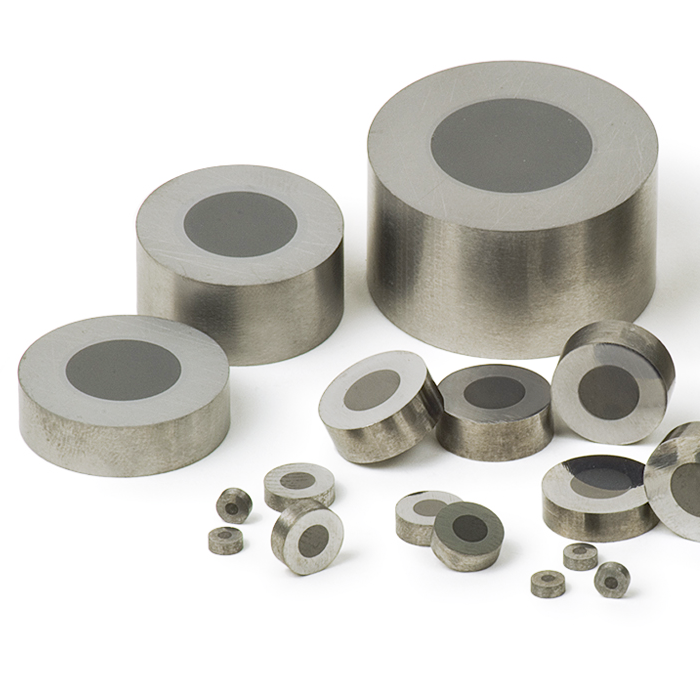

You can designate your favorite PCD blanks for us to make PCD dies, for example, Sumitomo, Compax and so on.

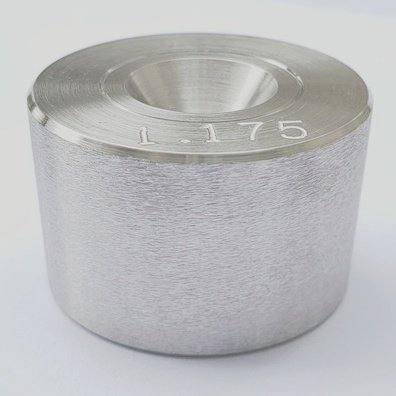

You can choose the materials and shapes of PCD dies’ cases. The cases can be conical or with special angles or middle lines.
Entrance, reduction angle, bearing, exit ,tolerance, polishing, each specification of the PCD die can be made according to your requirements.
Both OEM and ODM services are available. All of your special requirements on PCD dies can be met in HG.
Customers Feedback
As a PCD dies manufacturer, our PCD wire drawing dies and industry experience solved many wire drawing problems for customers.
This customer is a wire facotry mainly for aluminum wries. They matched wrong sizes of the PCD dies by themselves so the drawing machines can not draw correct wires. Then they found us and our technicians calculated the whole dies chain again according to their drawing machine’s parameters. Finally their machine work well and draw aluminum wires smoothly in correct sizes.

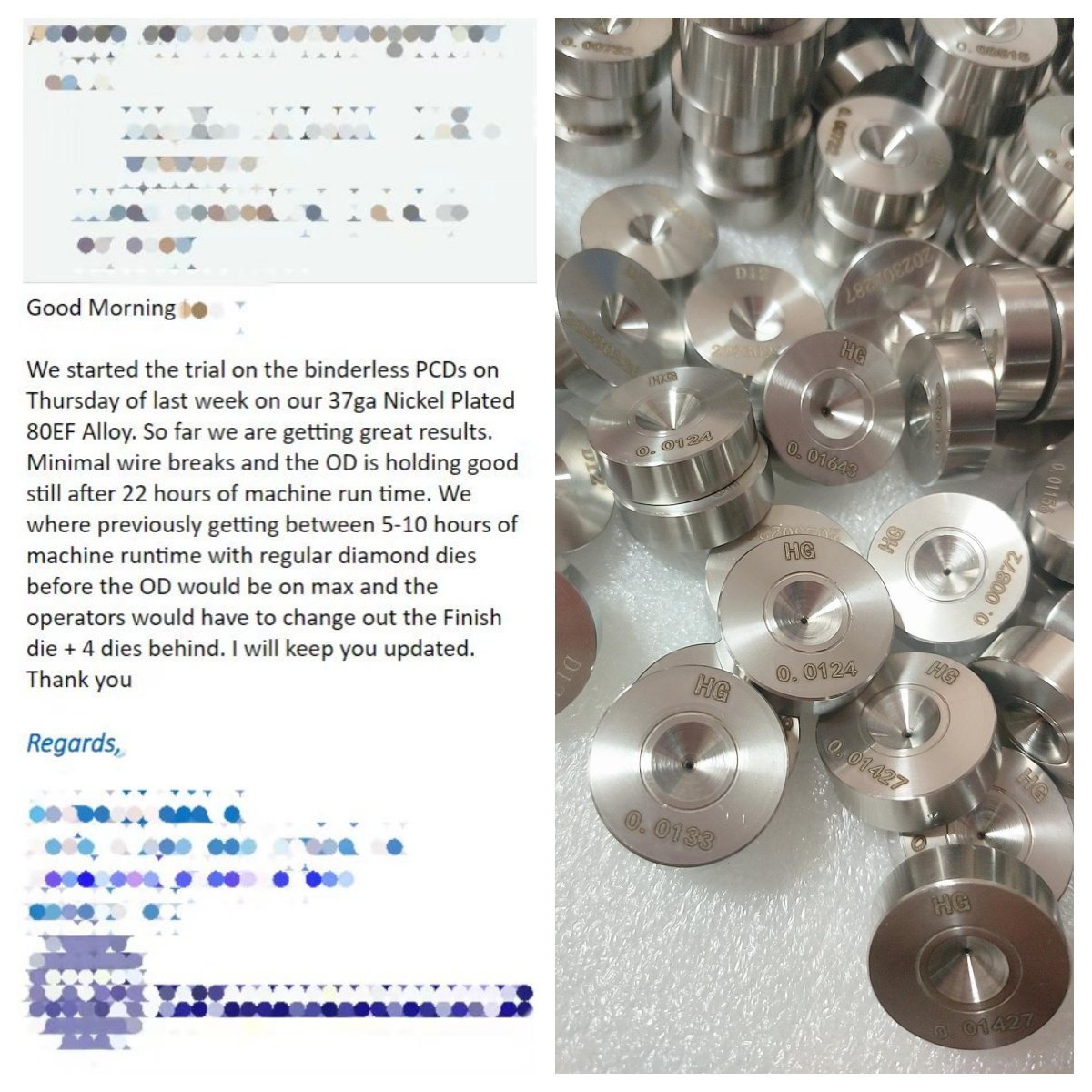

Customer needs binderless PCD wire drawing dies to draw nickel plated copper alloy. Their current dies’ performance is not good enough in life time. After using our binderless PCD dies, they feedback “We started the trial on our 37ga Nickel Plated 80EF Alloy. So far we are getting great results. Minimal wire breaks and the OD is holding good still after 22 hours of machine run time. Thank you!”
Recommended Diameters for PCD Dies
As a very important raw material of PCD dies, every PCD blank has its maximum diameter according to its diameter and thickness. Below recommended diameters may change when the drawing wires are different.
| Diameter ( inch) | Diameter (mm) | ADDMA | Tolerance(mm) | Roundness(mm) |
| 0.0039-0.0197 | 0.10-0.50 | D6 | 0.001 | 0.001 |
| 0.0118-0.0394 | 0.30-1.00 | D12 | 0.001 | 0.001 |
| 0.0197-0.0591 | 0.50-1.50 | D15 | 0.002 | 0.001 |
| 0.0315-0.0787 | 0.80-2.00 | D18 | 0.003 | 0.002 |
| 0.0472-0.1220 | 1.20-3.10 | D21 | 0.004 | 0.002 |
| 0.0591-0.1732 | 1.50-4.40 | D24 | 0.005 | 0.003 |
| 0.1299-0.2283 | 3.30-5.80 | D27 | 0.005 | 0.004 |
| 0.2008-0.3543 | 5.10-9.00 | D30 | 0.007 | 0.005 |
| 0.3150-0.4921 | 8.00-12.50 | D33 | 0.010 | 0.008 |
| 0.3150-0.5000 | 8.00-12.70 | D36 | 0.010 | 0.010 |
| 0.3150-1.1417 | 8.00-29.00 | D36+ | 0.015 | 0.015 |

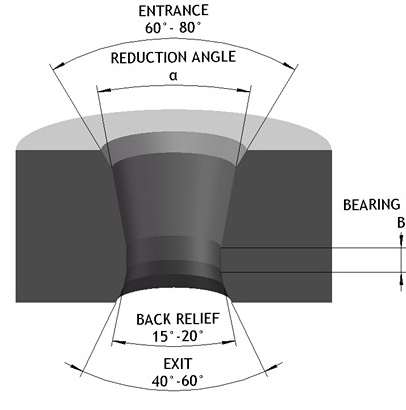

Recommended Reduction & Bearing for PCD Dies
Reduction angle decides the deformation extent of inlet wires and bearing decides the final wires’ diameters and surface. Here is recommended reduction and bearing of some common wires.
| Wires (Reduction angle) Reduction Ratio | 5-8% | 8-12% | 12-16% | 16-25% | 25-35% | Bearing Length(%) |
| Gold,silver,lead,zinc | 14〫 | 16〫 | 18〫 | 22〫 | 24〫 | 20%-40% |
| Copper, Aluminum,nickel | 10〫 | 12〫 | 14〫 | 18〫 | 22〫 | |
| Stainless steel,Copper alloys, Aluminum alloys | 9〫 | 11〫 | 13〫 | 16〫 | 18〫 | 30%-70% |
| High carbon steel | 8〫 | 10〫 | 12〫 | 15〫 | 18〫 | |
| Tungsten,Molybdenum, Platinum,Ni-Cr alloys | 10〫 | 10〫 | 12〫 | 14〫 | 16〫 |

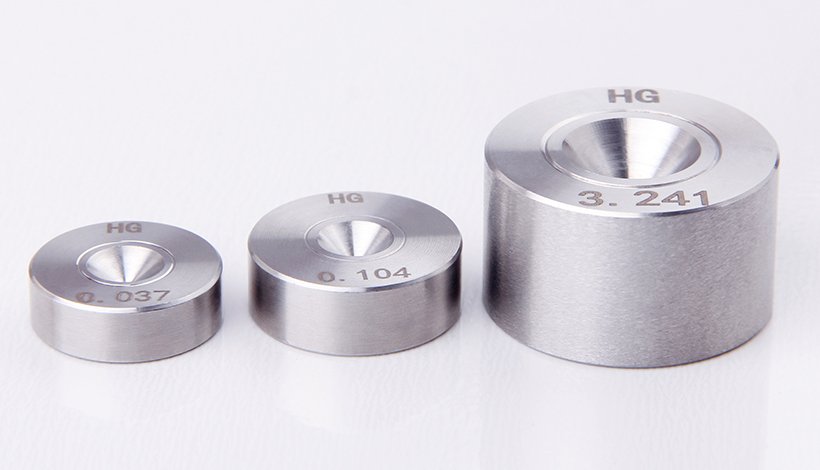

Because high quality raw materials and complete production crafts, life time our PCD dies are usually longer than expected. Moreover, their performance is stable in wire drawing process. In this case, production efficiency can be improved greatly.
If you do not have special requirements, we usually use the best PCD blanks made in China. If you want PCD dies to be made by other manufacturers, it’s no problem.
Price is decided by diameters and PCD blanks used. Please inform the exact sizes you need and we’ll offer soon.
Generally speaking, the PCD dies will be packed in carton and delivered by International Express by air, say UPS, FEDEX, DHL and so on. If you have any special requirements, please advise and we can operate accordingly.
HG will check everiy piece of PCD dies to ensure the correct specifications. If you need a report, please inform in advance and we’ll prepare the inspecting results for your reference.
PCD drawing dies are only a kind of our products. We also manufacture natural diamond dies and tungsten carbide wire dies, wire guides. PCD nozzles are also available.
Polycrystalline diamonds are usually processed further to be PCD blanks, PDC cutters etc. These are raw materials of PCD wire drawing dies and PDC drill bits. The price is upon to the quantity customer need.
Yes. Some customers in India need our PCD dies and shaving dies for copper wires , welding wires. We have cooperated for about 5 years.
At the beginning, some customers may need several samples for testing. The MOQ would be 5-10 pcs per size.
The smallest diameters we made for PCD die is 0.08mm. For smaller sizes, customer usually choose natural diamond dies or synthetic single crystal diamond dies.
Sure. Our wire drawing dies factory is in Henan Province, a city in the middle of China. Welcome to our factory !
Freight is negotiable. We can deliver the PCD dies by your express account. If use our account, the freight can be included in price.
