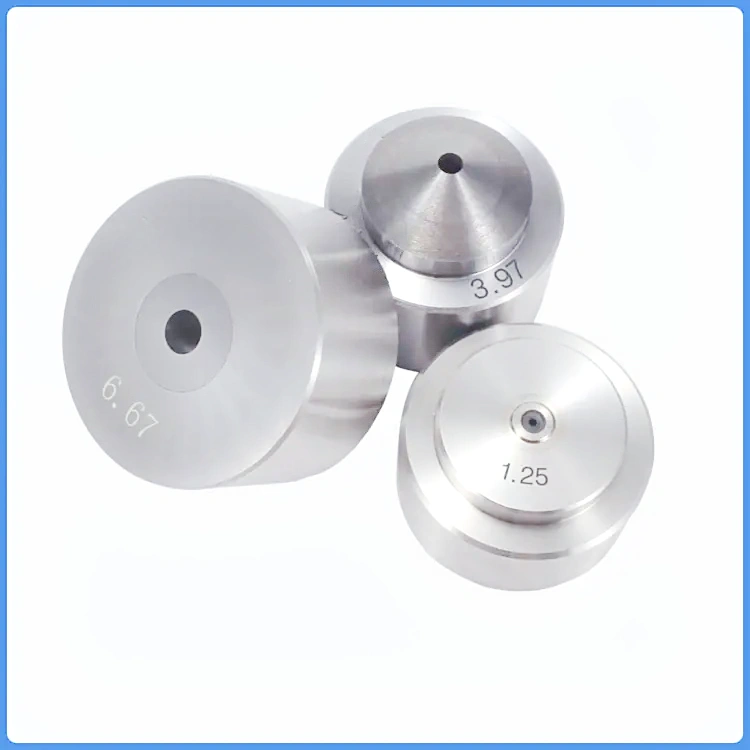

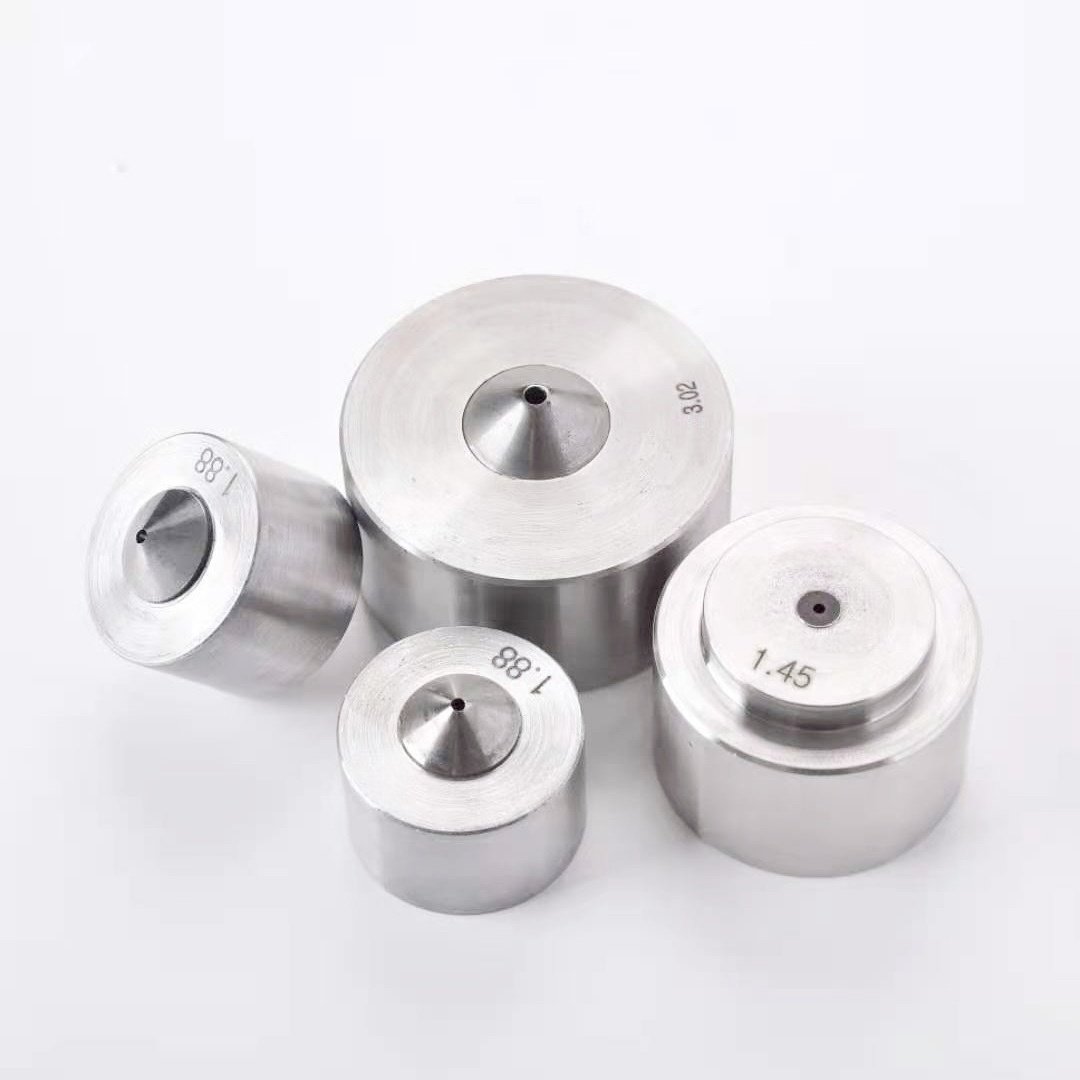

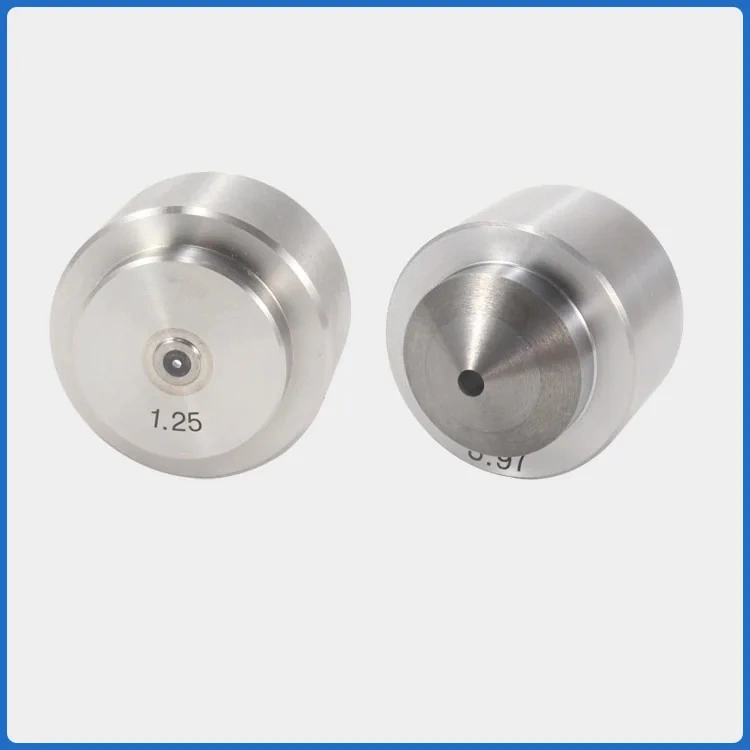

What is Shaving Die
Before wire drawing, there are always some oxide, rust, coating or other impurities on wires surface, which will affect the wires’ performance in welding process. Shaving dies can help you remove above mentioned impurities from the wires. There are usually PCD shaving dies and tungsten carbide shaving dies in market.
Shaving Dies with Different Shapes
Wire manufacturers usually use different machines to shave wires, so there are different shapes of shaving dies to match their machines.

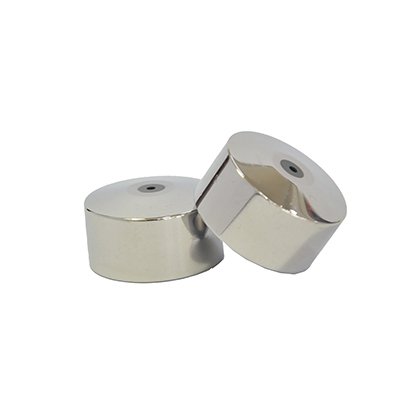

Flat PCD Shaving DiesFlat PCD shaving dies means the PCD part and the whole upper face of are on the same level.

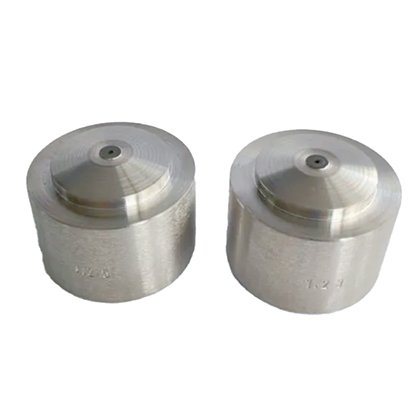

PCD Shaving Dies with StepsHG also manfacture shaving dies with steps to ensure the wire is in the middle of the hole in shaving process.

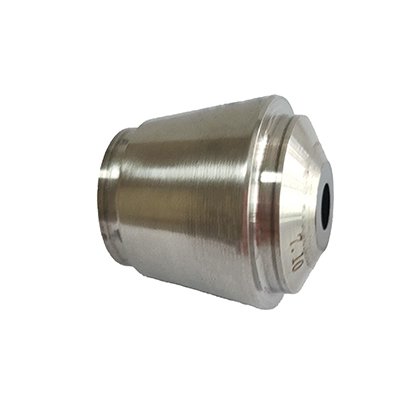

Conical PCD Shaving DiesBesides cylindrical case, some shaving dies need conical cases to match with the shaving machines.
Shaving Dies for Different Wires
Different wires usually have different coatings on their surface. Besides welding wires, HG shaving dies can also be used to shave other wires.

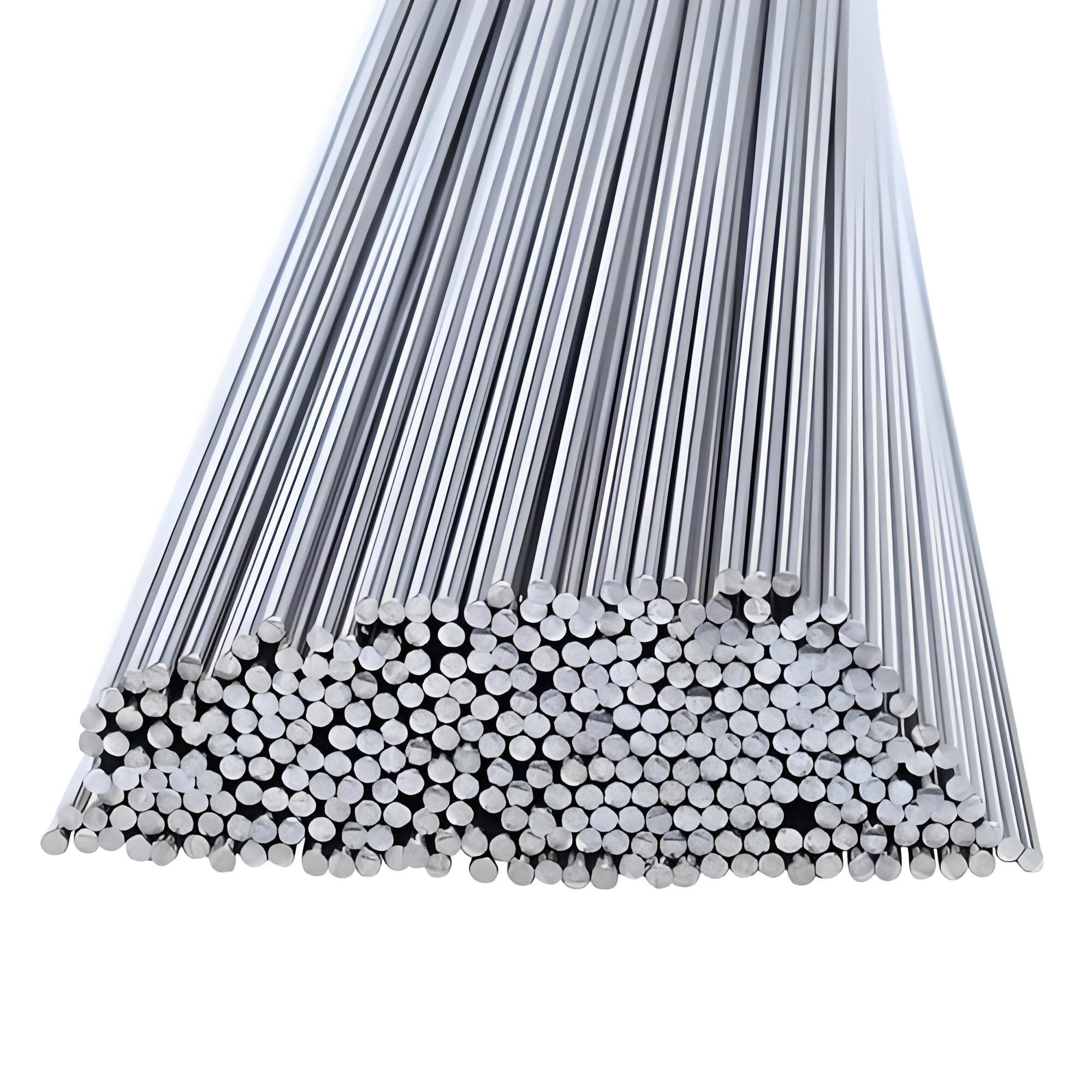

PCD Shaving Dies for Welding WiresShaving dies are usually used to process kinds of aluminium welding wires with impurity on their surface.

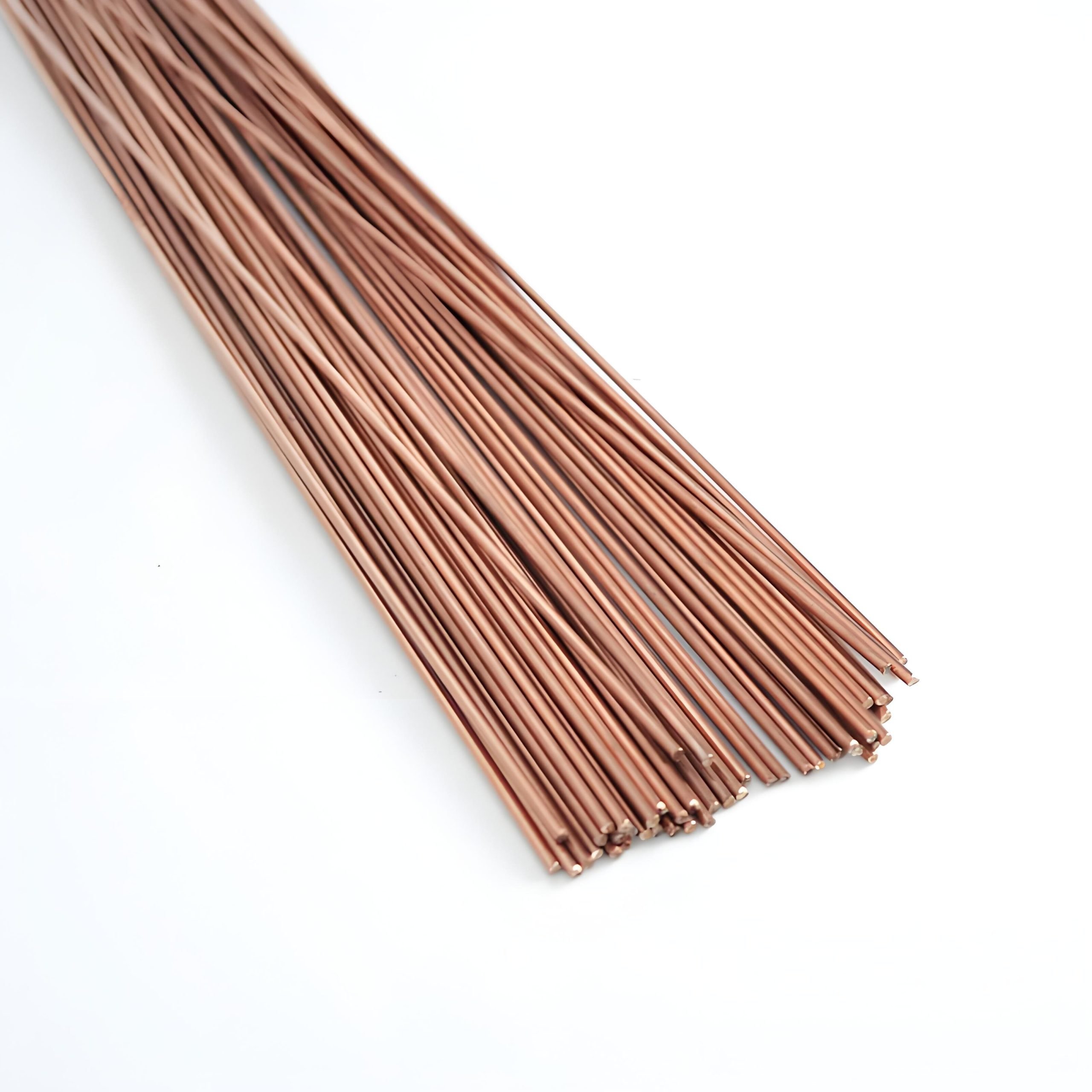

PCD Shaving Dies for Copper Wires/ RodsSome copper wires and rods also need to be shaved by shaving dies before drawing.

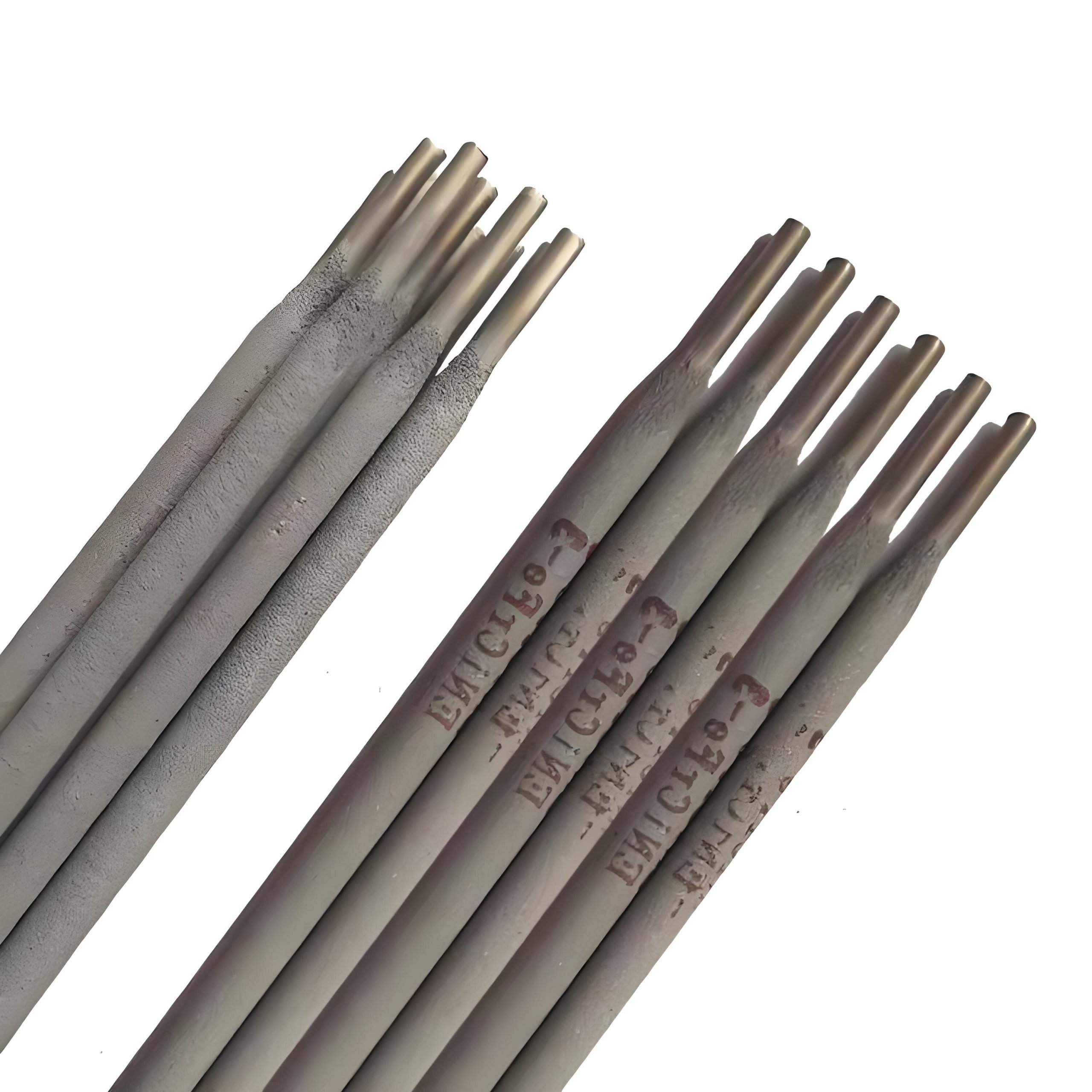

PCD Shaving Dies for Alloy WiresOxide on surface of copper and aluminum alloys cab be removed by shaving dies.
Shaving Dies Made By Different Materials
As wire drawing dies, there are also different materials to make shaving dies for different wires or bars.

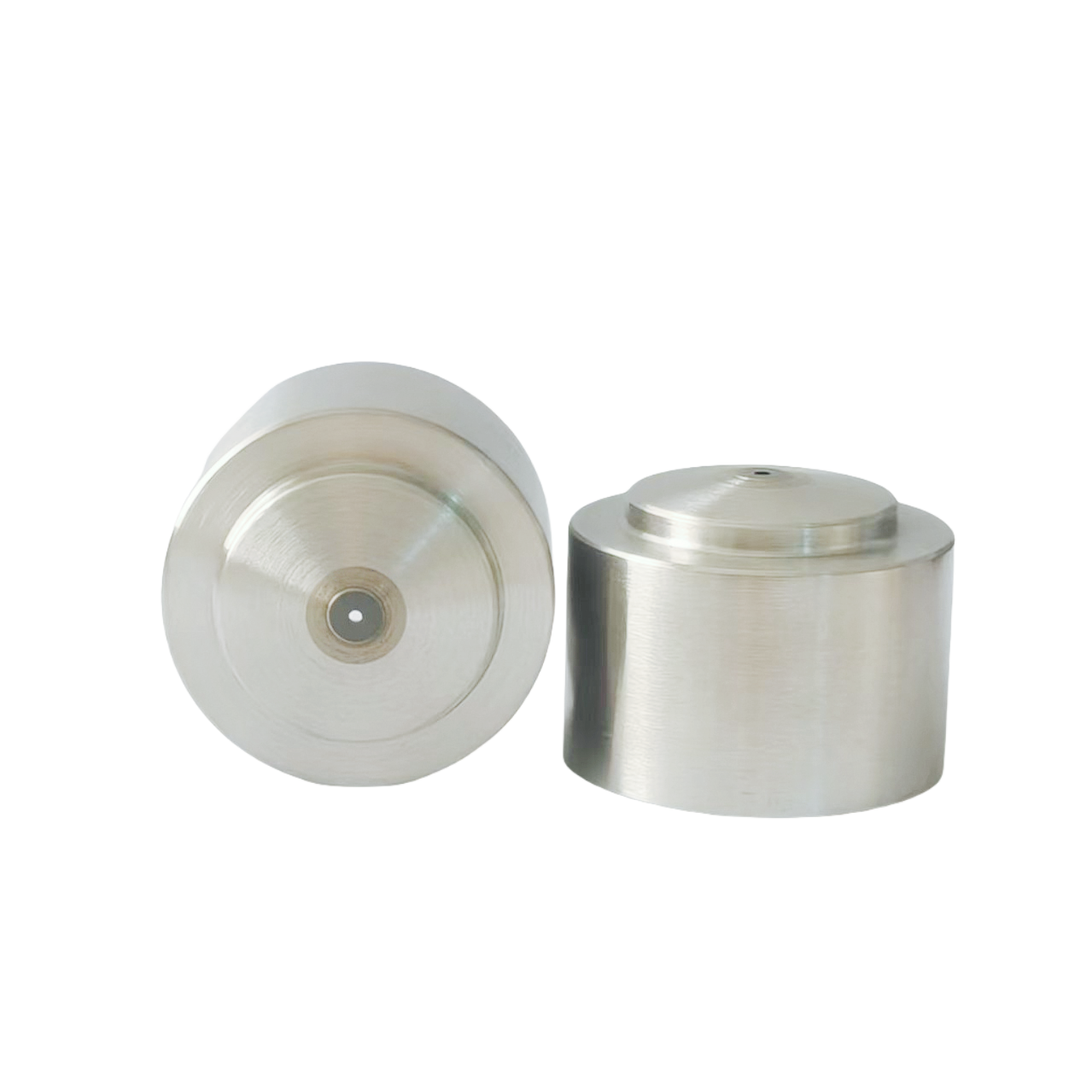

PCD Shaving DiesPCD shaving dies are made by PCD blanks without tungsten carbide support. With long life time and high efficiency, HG are able to make PCD shaving dies from 0.5mm-9.50mm.

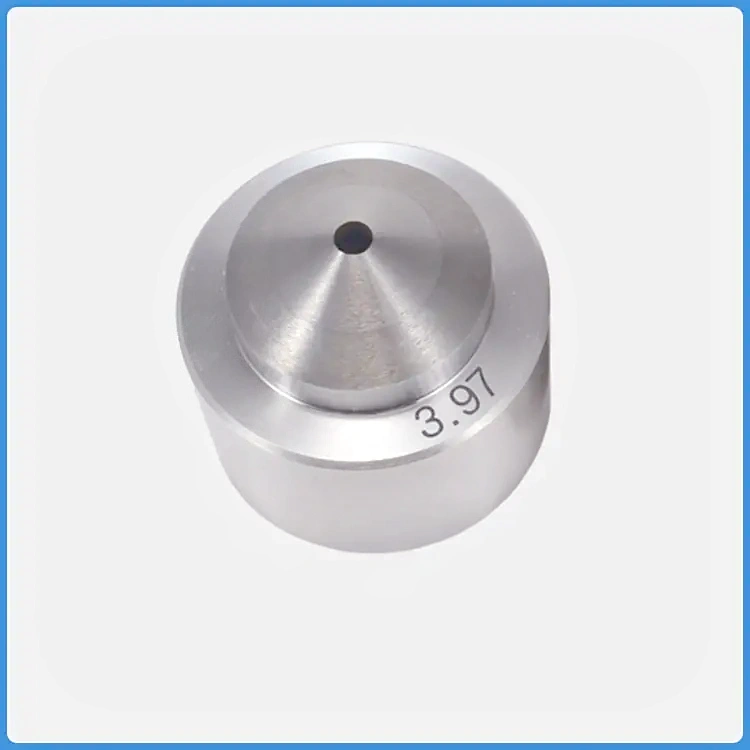

Carbide Shaving DiesCarbide dies are make by tungsten carbide nibs with a wider range of diameters. Their better toughness are more appliable for harder materials say steel wires.

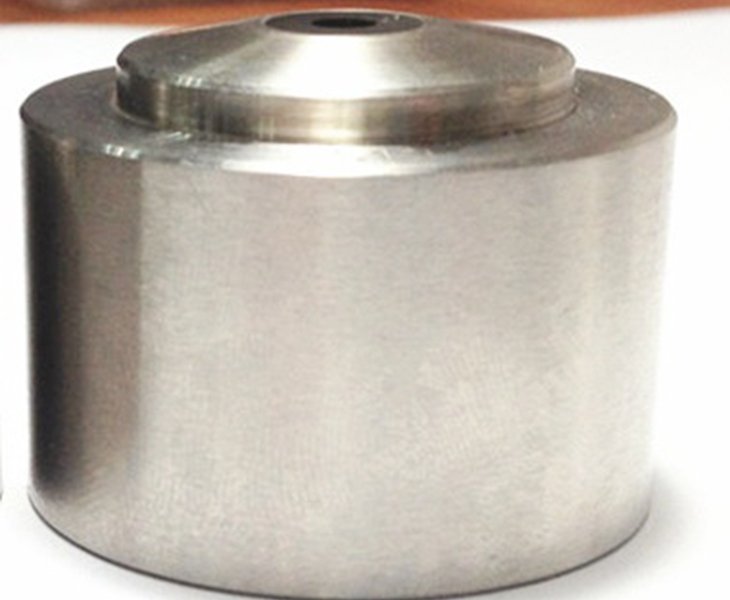

Customized Shaving DiesSome customers may need shaving dies made by other materials they like. HG are also able to make them according to your special requirements on both materials and shapes .

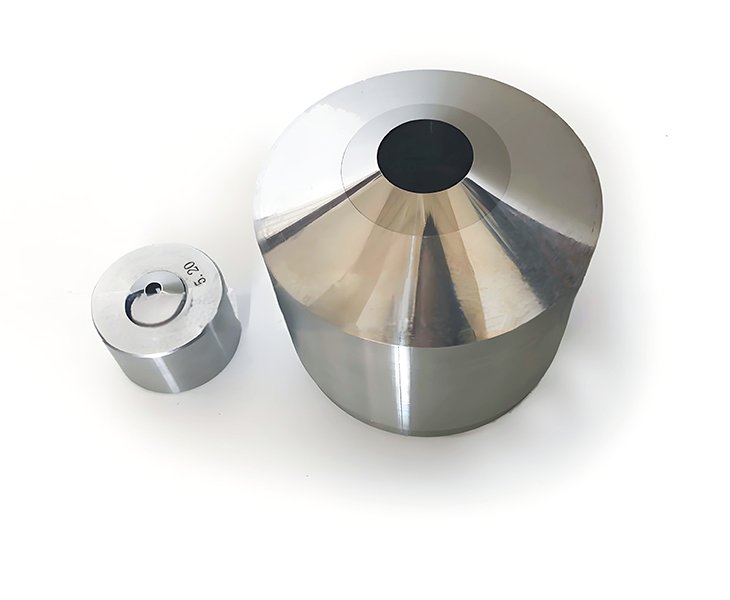

Sharp Edge
PCD core is the working part of a PCD shaving die. The PCD hole’s sharpness decides if impurities on wire surface can be removed thoroughly. When make shaving dies, HG usually choose PCD blanks with enough diametesr and thickness then make the hole sharp enough to make your wire surface shiny. The working part should be polished smooth and flat to ensure a good performance in wire shaving process.

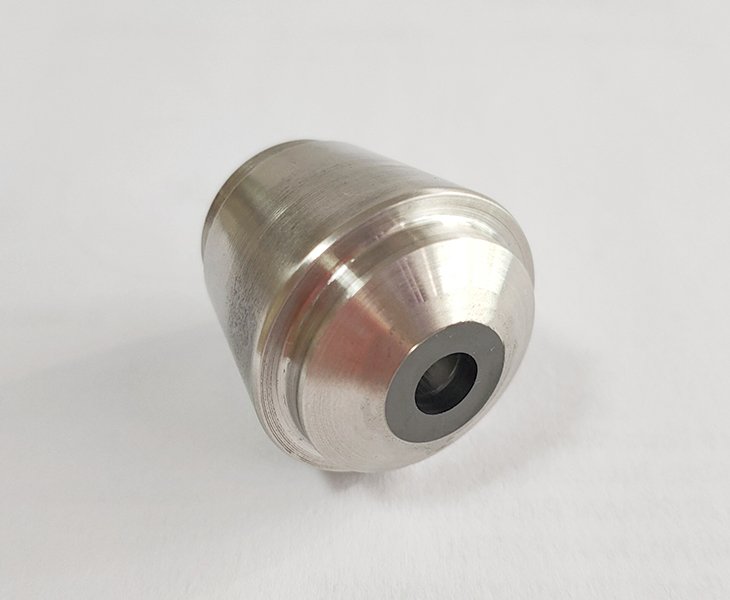

Reasonable Design
Without many specifications like drawing dies, shaving dies have only several specifications and the cutting face is the most important one. So it’s important to design the shaving dies reasonably to make the PCD core combined with cases tightly and each part of the shaving die bears uniform stress in wire shaving process.
There are many kinds of shaving machines and HG are able to design the suitable shaving dies for you.

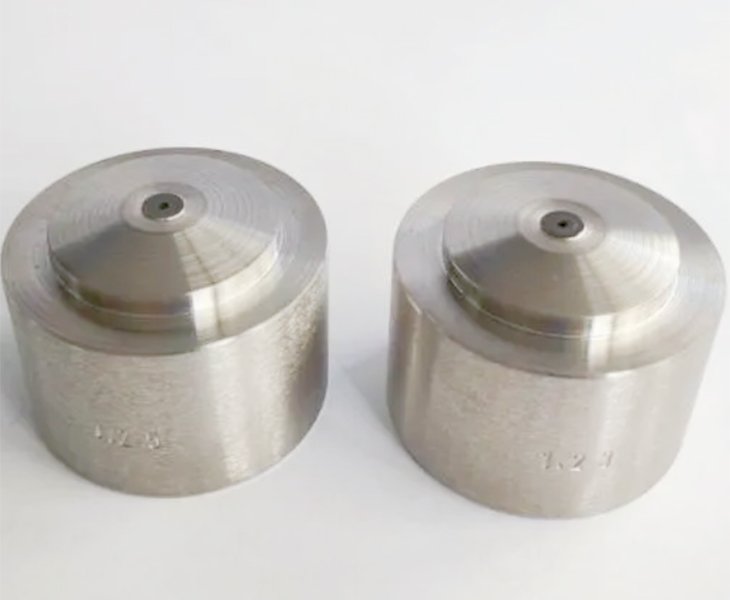

Excellent Thermal Conductivity
Thermal conductivity is also a critical performance specification for shaving dies. Only when the heat in shaving process was conducted in time, the heat can not accumulate on wire surface to cause a surface burn. PCD blanks, case material and dies’ design are all important to a shaving die’s thermal conductivity.
When make the shaving dies, we choose the suitable materials and reasonable specifictions to ensure their thermal conductivity.

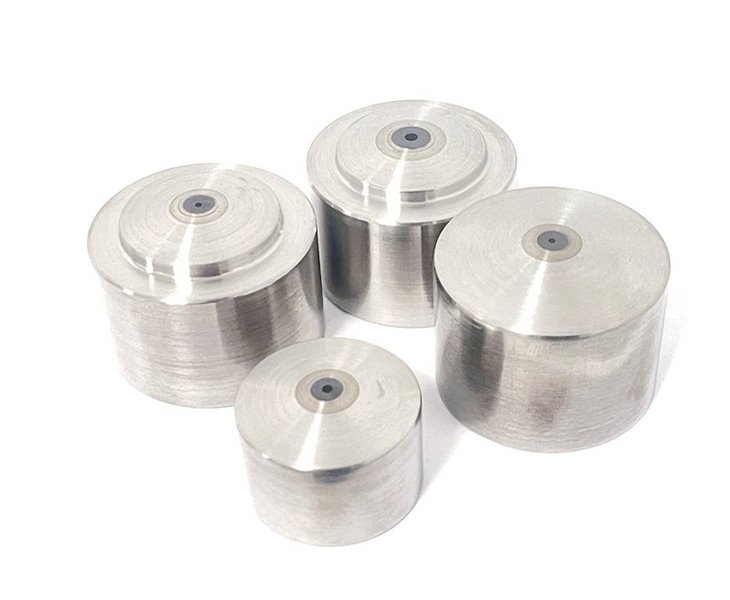

Long Service Time
Made by abrasive PCD blanks and reasonable geometry, HG shaving dies can work a longer time for welding wires, copper, aluminum and alloy wires.Your production cost will be cut down and wire surface will be clean enough for drawing in next step.
For PCD shaving dies with big sizes, the PCD core must combine with case very tightly to avoid PCD falling off the case or breaking.

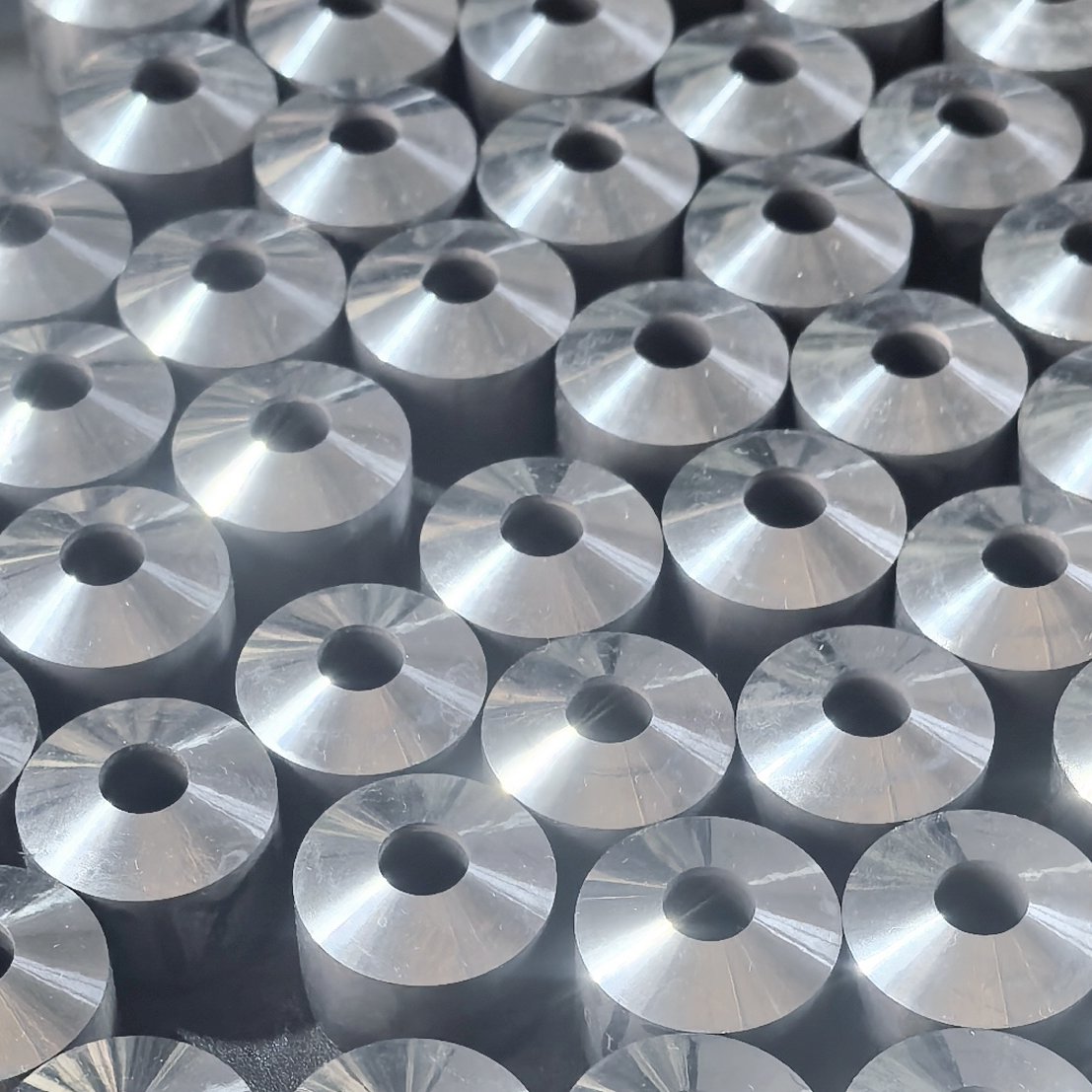

Customized Shaving Dies
Besides above mentioned shapes, there are always some other shaving dies. If you have special requirements on diameters and especially cases, please provide a drawing or real die then we are able to make the same one to match your shaving machines.
If you have any problems for current shaving dies, we are also happy to help.
Learn More About Shaving Dies
Concentration is the other important parameters for a shaving die. Only when it’s small enough, the shaving die can perform well in wire shaving. First of all, the hole should be in the central of a PCD or tungsten carbide coer. Then the core should be in the middle of the shaving die’s case.
When making the shaving dies, we usually control the hole drilling and casing processes strictly to ensure a good concentration for a shaving die.
If the wire is hard or its diameters is big, tungsten carbide shaving dies will be a best choice because their good toughness and wide sizes range. For example, it’s better to shave the 9.0mm steel wire by a tungsten carbide shaving dies.
For many samll sizes copper , aluminum welding wries or alloy wires, PCD shaving dies will have better performance in efficiency and service time.
The diameter reduce of wires can not be very big to avoid the shaving die’s shaving performance and service time.
Generally speaking , it’s usual to shave off 0.02mm-0.03mm from the original wires by shaving dies.
By now, we mainly produce PCD shaving dies for wires and rods. Tungsten carbide shaving dies are also available.
Welding wires are the mostly used wires. Then our shaving dies also perform well in copper wires , aluminum wires ,rods and kinds of alloy wires.
It’s no problem. Customized shaving dies are welcomed.
Yes. If you can provide a real die for us checking, that will be better. No matter new or used one even a photo is helpful.
All PCD blanks used to make shaving dies are self supported blanks. We use PCD blanks form the first class manufacturers in China.
Please inform the diameters and cases shapes you need and we’ll quote accordingly.
There is no a standard price list.
The sizes we are able to make for PCD shaving dies is 0.50mm-9.50mm now.
Generally speaking, PCD shaving dies can be used to shave copper ,aluminum and kinds of alloy wires.
It’s upon to your steel wires’ diameters. For 0.50mm-6.00mm steel wires, PCD shaving dies are no problems. For bigger sizes, we suggest tungsten carbide shaving dies.
Delivery time is decided by shaving dies’ shaps and quantity. We will give a estimated shipping date for each order.
