Tungsten Carbide Dies 0.30mm ~ 80.00mm
As a kind of traditional wire dies, HG tungsten carbide wire drawing dies have a wide diameter scope, 0.30mm~80.00mm to meet customers’ drawing demands for any wires, tubes and bars. Tungsten carbide dies are friendly to some wires need low production cost, especially for some big sizes wires or tubes.
Your Reliable Tungsten Carbide Die Supplier in China !
With wide ranges of diameters and comparatively cheap price, tungsten carbide dies play an important role in wires and cables industry.
As a tungsten carbide dies factory in China, HG are able to make all the carbides you need. Customized TC dies are also welcomed !

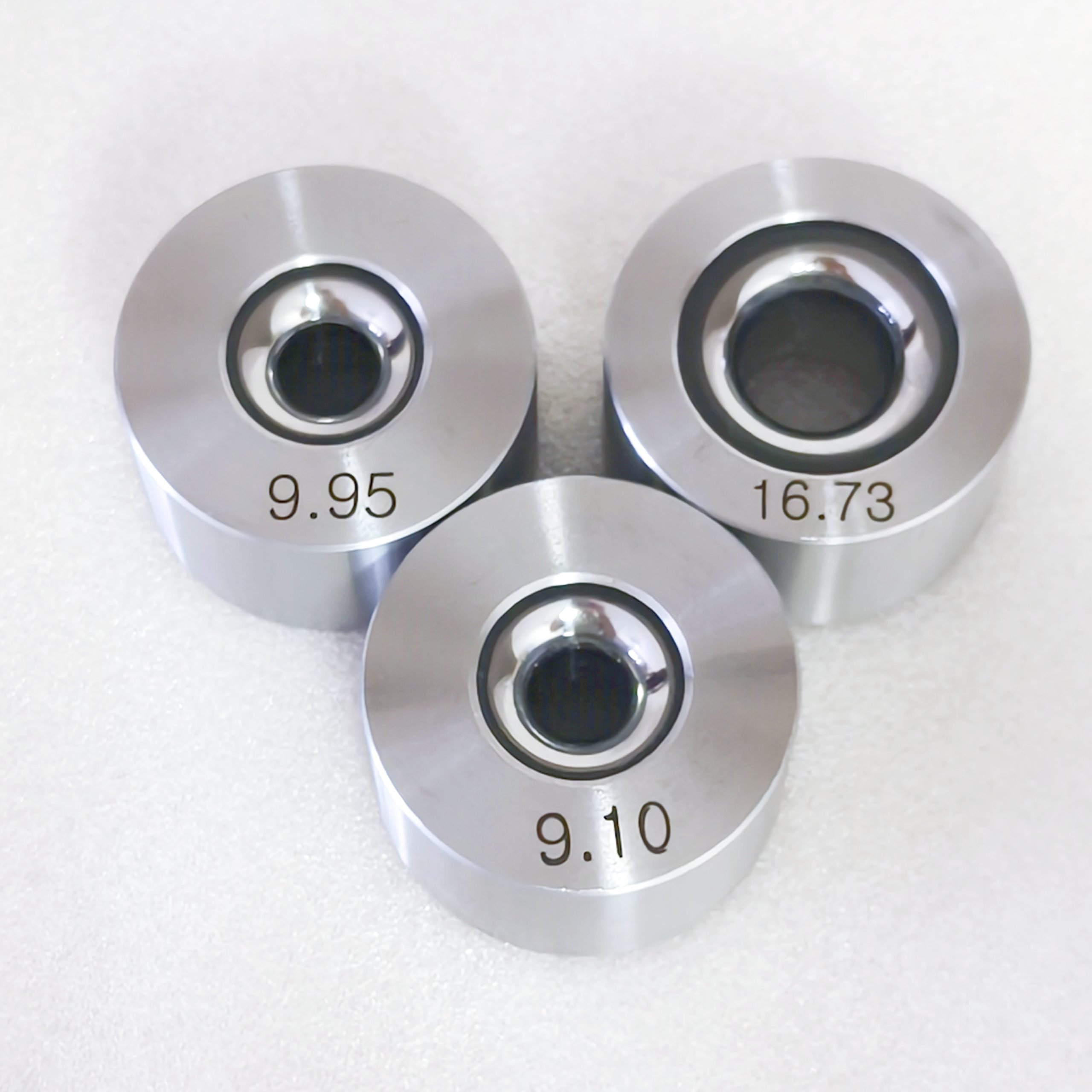

Tungsten Carbide Dies in Different Materials
Generally speaking, there are mainly 3 kinds of tungsten carbide according to different compositions and proportion of the carbides.

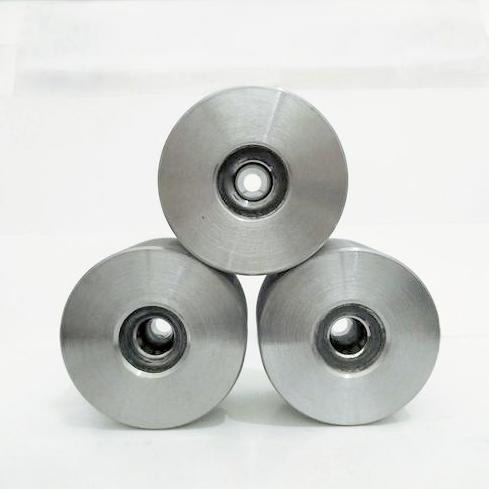

Tungsten Cobalt Carbide (YG)The main compositions of YG tungsten carbide dies are tungsten carbide and the binder cobalt. Its brand name is combined with “YG” and the percentage of average cobalt content.

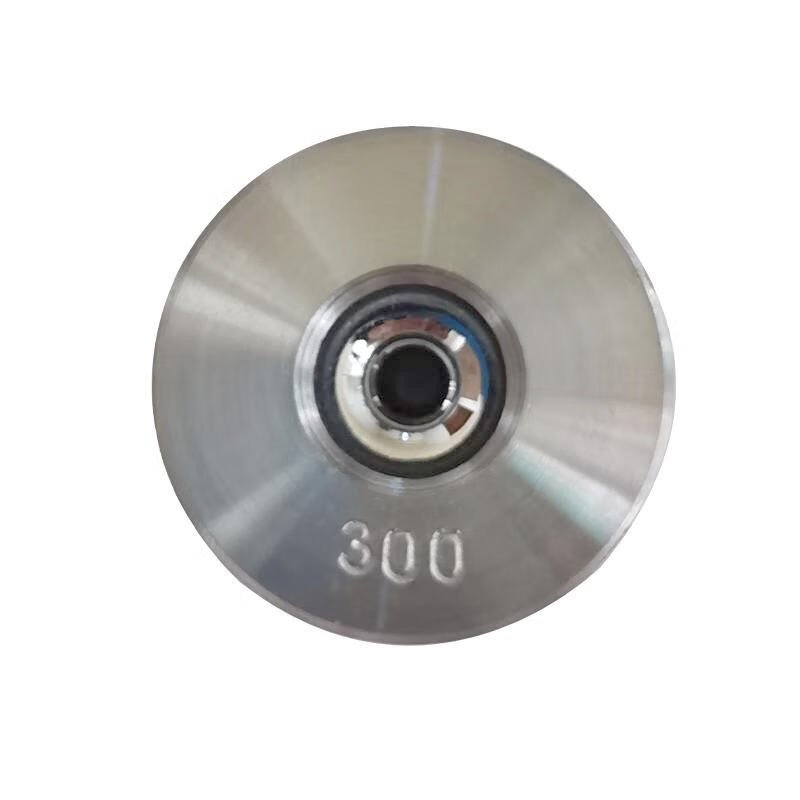

Tungsten Titanium Cobalt Carbide (YT)The main compositions of YT tungsten carbide dies are tungsten carbide, titanium carbide and cobalt. Its brand name is “YT” and the percentage of average titanium carbide content.

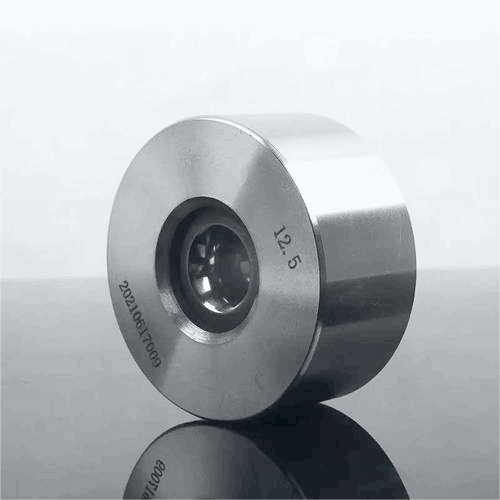

Tungsten Titanium Tantalum (Niobium) Carbide (YW)The main components of YW tungsten carbide dies are tungsten carbide, titanium carbide, tantalum carbide (or niobium carbide) and cobalt.
Tungsten Carbide Dies in Different Shapes
There are several shapes of tungsten carbide dies for following applications.

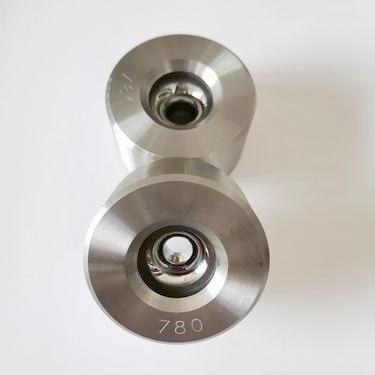

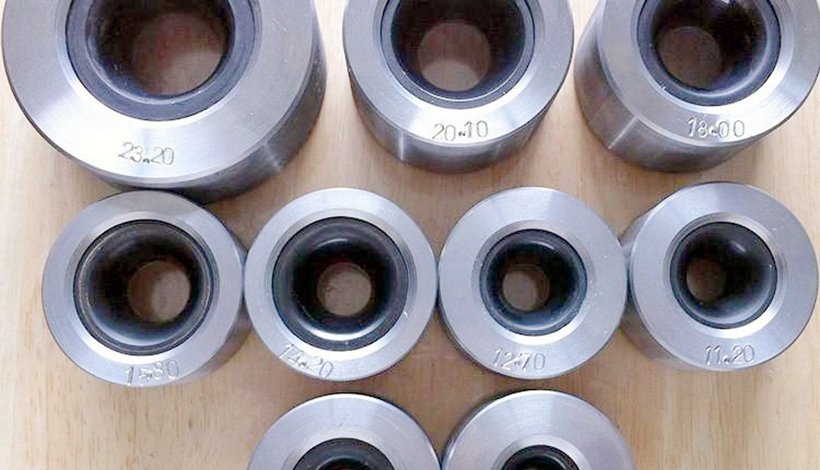

Round Tungsten Carbide DiesWith diameters 0.3mm~80.0mm, round tungsten carbide dies mostly used TC dies for many kinds of wires, tubes and bars for different industries.

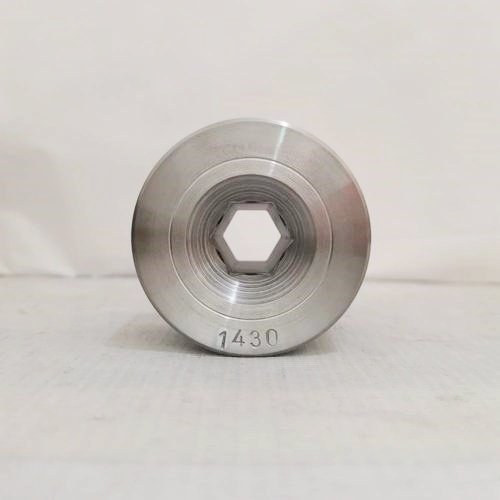

Shaped Tungsten Carbide DiesBesides round TC dies, regular shaped TC dies, like square, rectangular dies are also available. Irregular shaped dies are also available in HG.

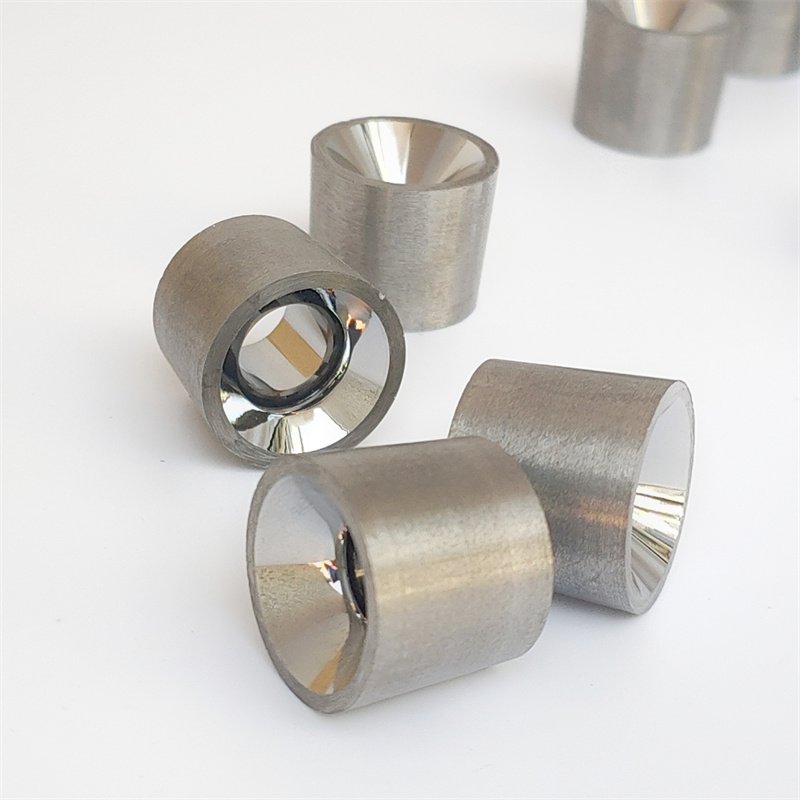

Tungsten Carbide Dies with High Abrasive ResistanceSome customers need tungsten carbide dies with high abrasive resistance to produce electrodes and other hard wires, rods by dry drawing.
Tungsten Carbide Dies for Different Wires, Tubes
As one of the important tungsten carbide tools in wire industry, carbide dies are widely used for many kinds of non ferrous and ferrous wires, bars, tubes.

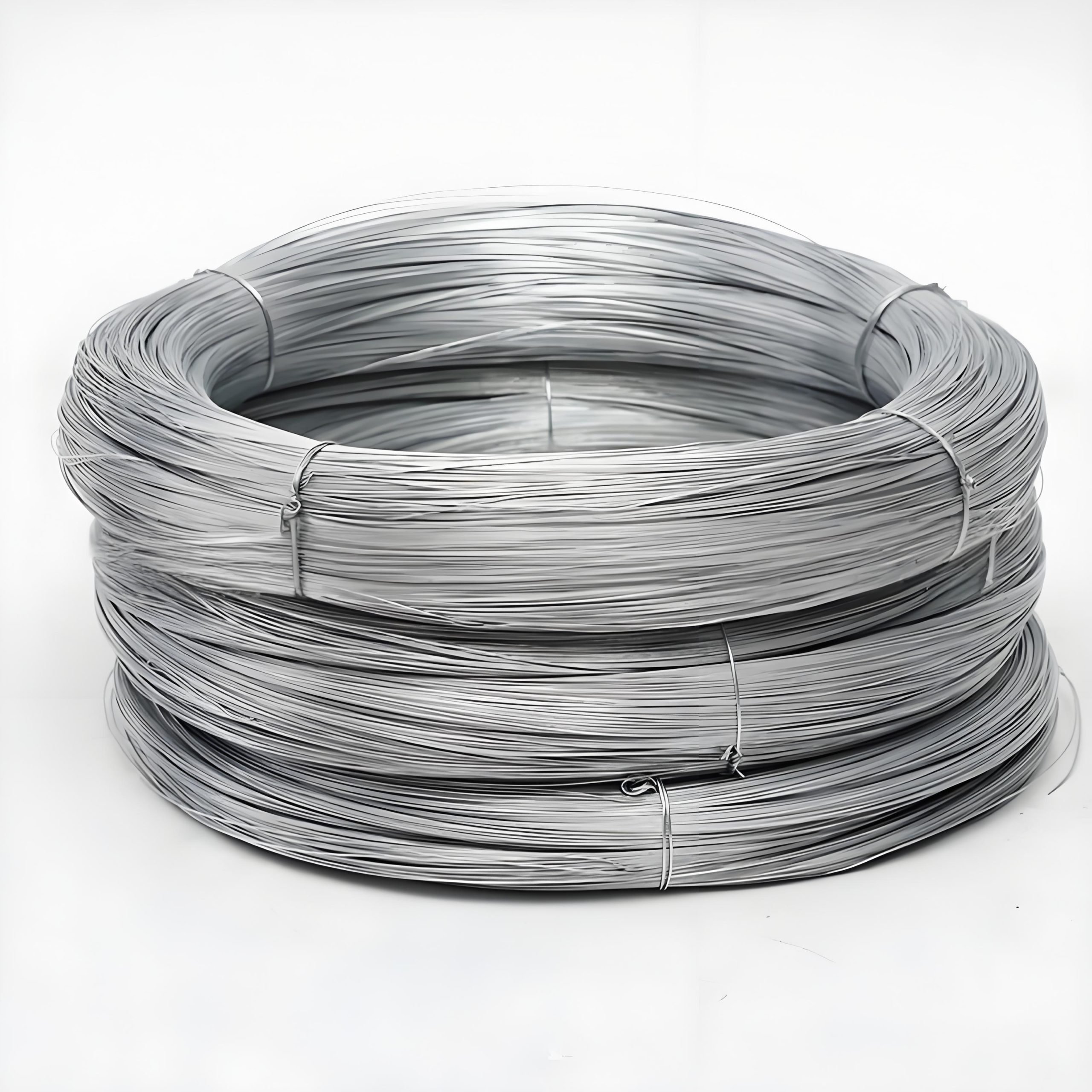

Tungsten Carbide Dies for Steel Wires, BarsRound and shaped steel wires, bars, tubes can be drawn by tungsten carbides, say stainless steel , high carbon steel , high speed steel wires.

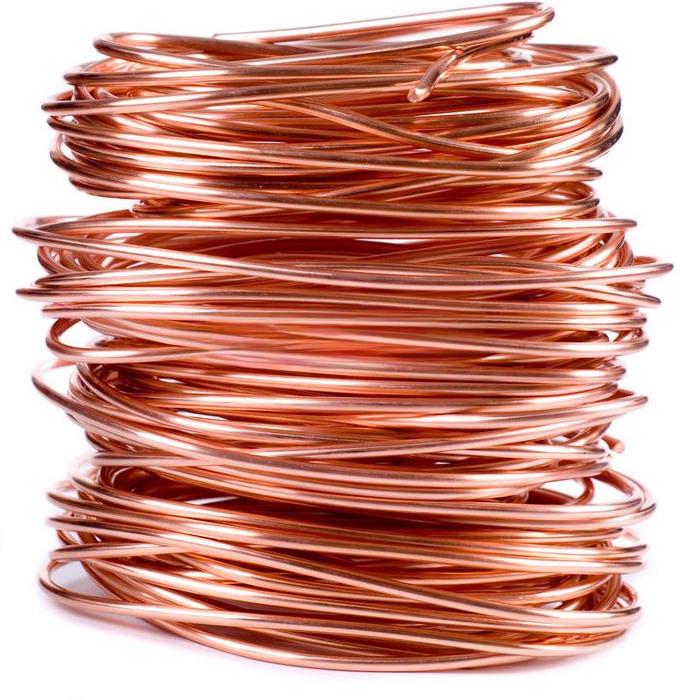

Tungsten Carbide Dies for Copper, Aluminum WiresCopper wires, aluminum wires and their alloy wires are usually drawn by tungsten carbide wire drawing dies in wide range of diameters.

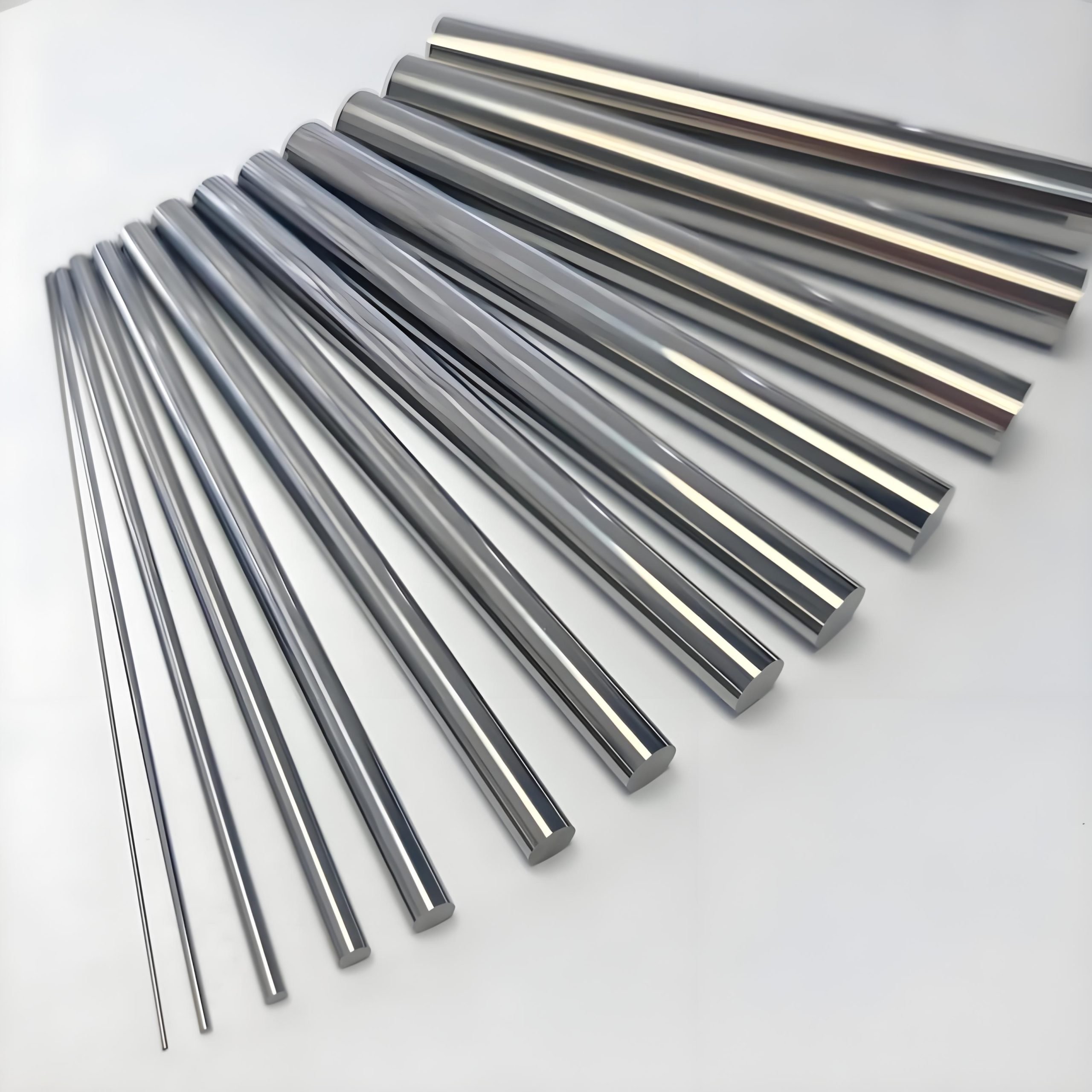

Carbide Dies for High Melting Point MetalsHigh melting point metal wires such as tungsten , molybdenum , titanium wires ,bars and their alloys can also be produced by tungsten carbide dies.

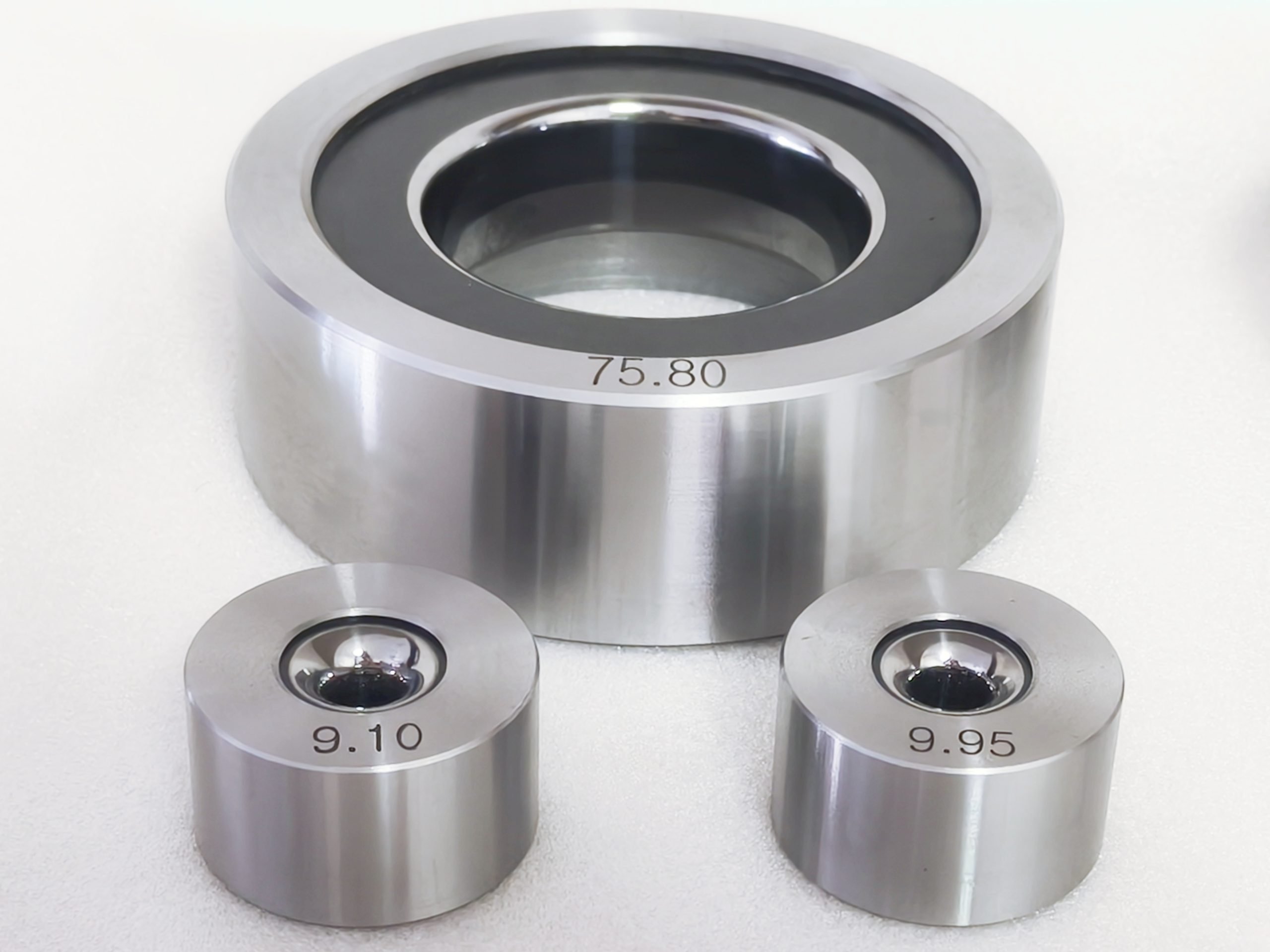

Tungsten Carbide Dies in Wide Range of Diameters
As a tungsten carbide die supplier in china, HG manufacture tungsten carbide wire drawing dies with extensive diameters range.

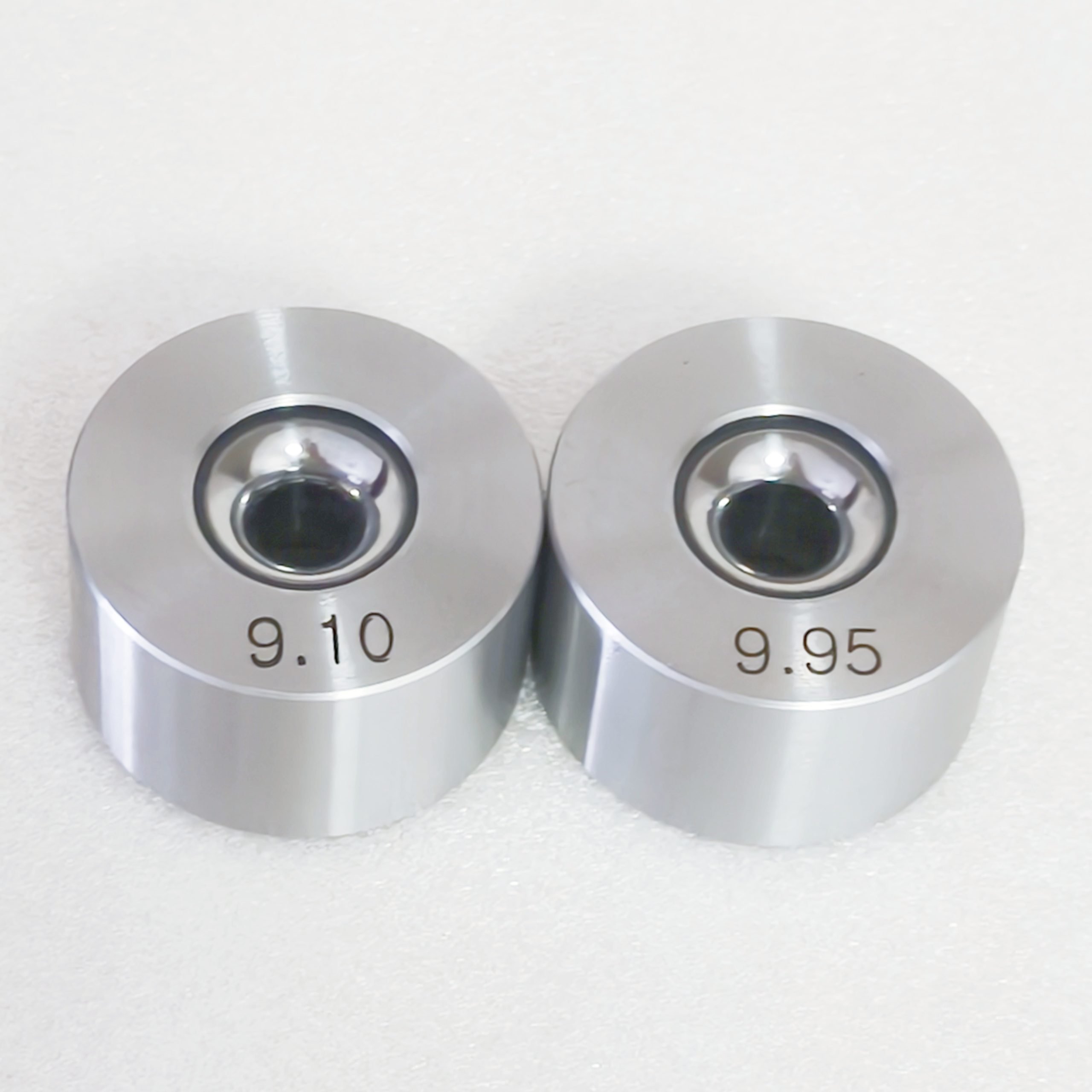

Carbide Dies 0.30mm~10.00mmThe minimum carbide dies we manufacture is 0.30mm. For the smaller sizes wire dies, customer prefer diamond dies for better wire surface.

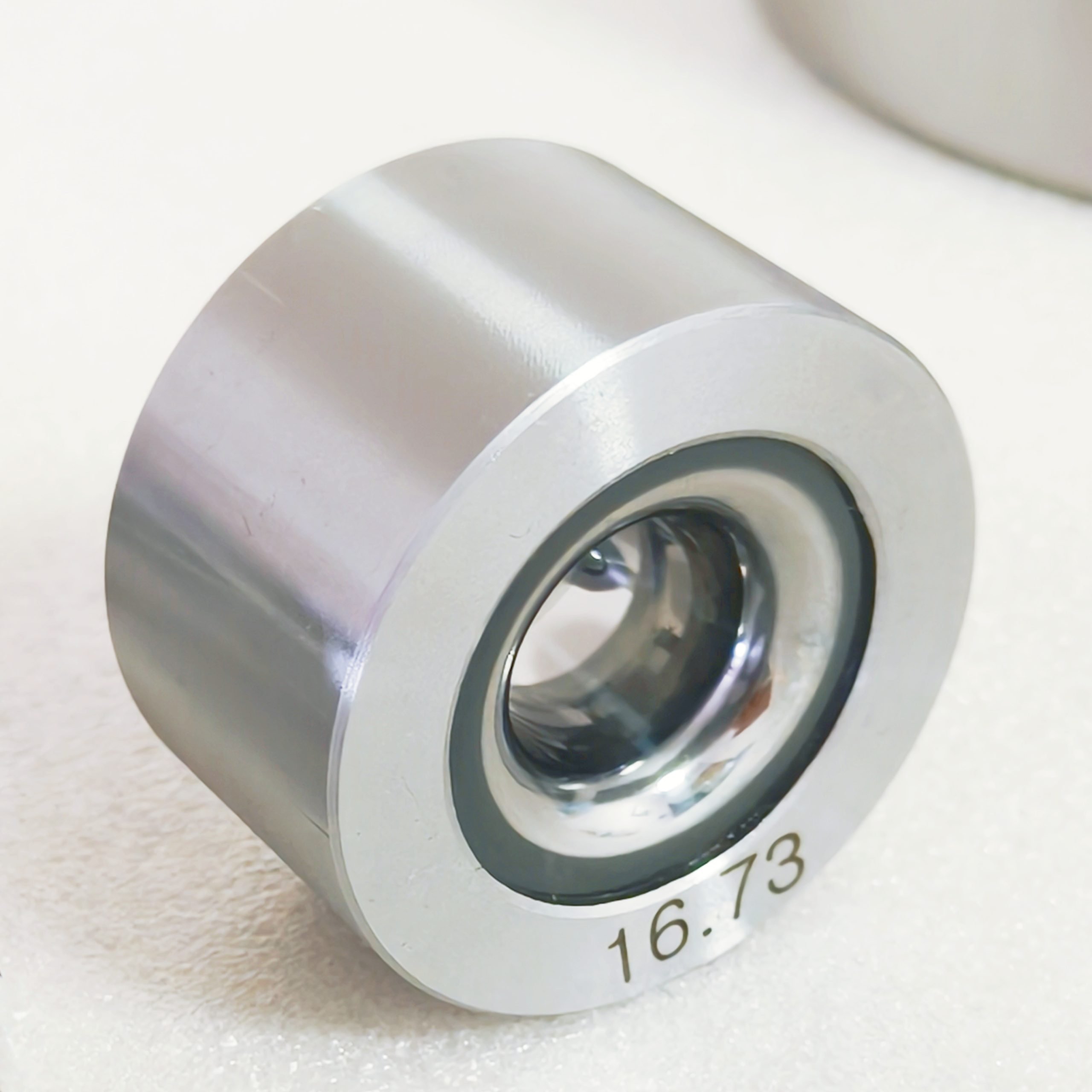

Carbide Dies 10.00mm~20.00mmCarbide dies in this diameter range are the most widely used sizes to draw kinds for wires, bars, tubes. TC dies’ cost performance is evident in this stage.

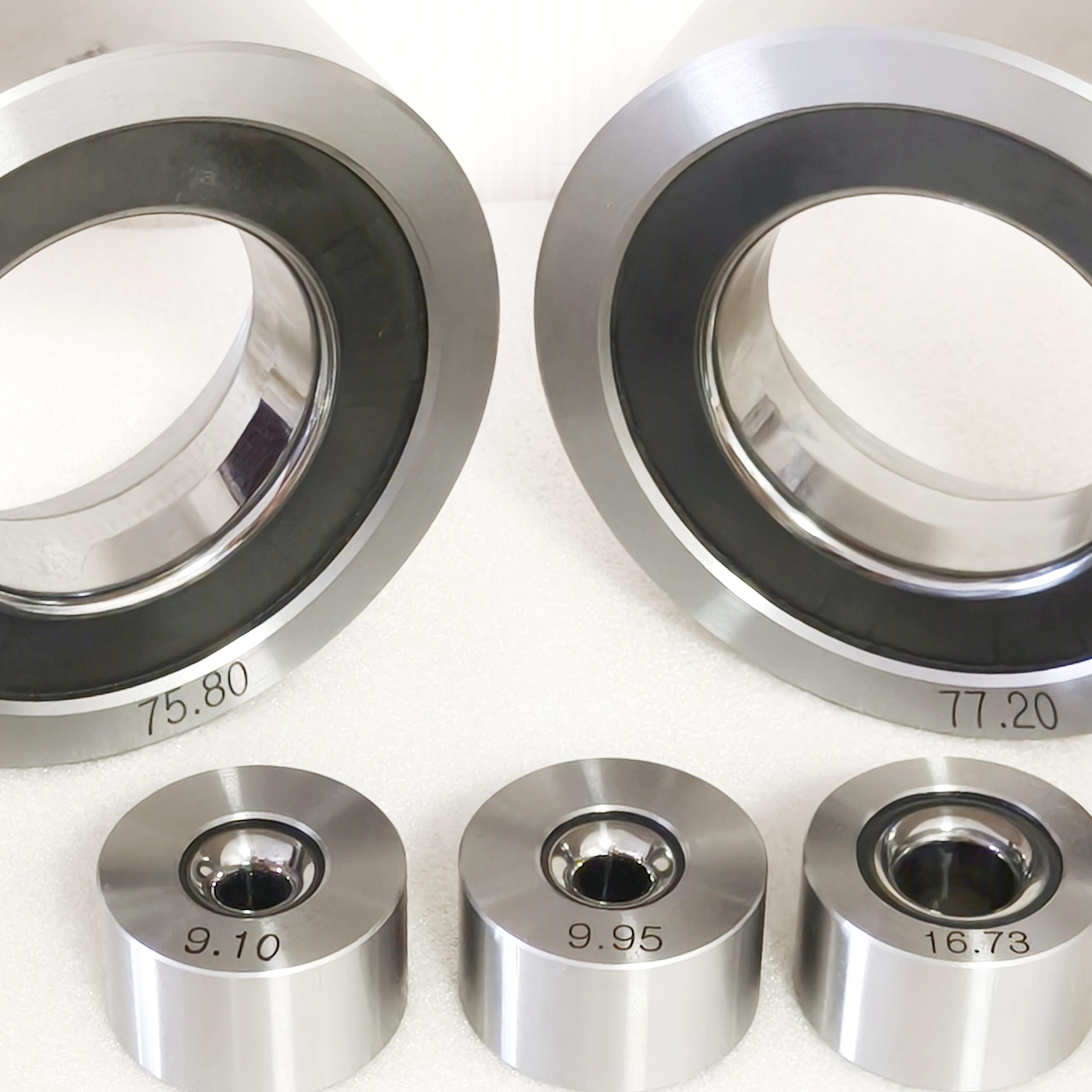

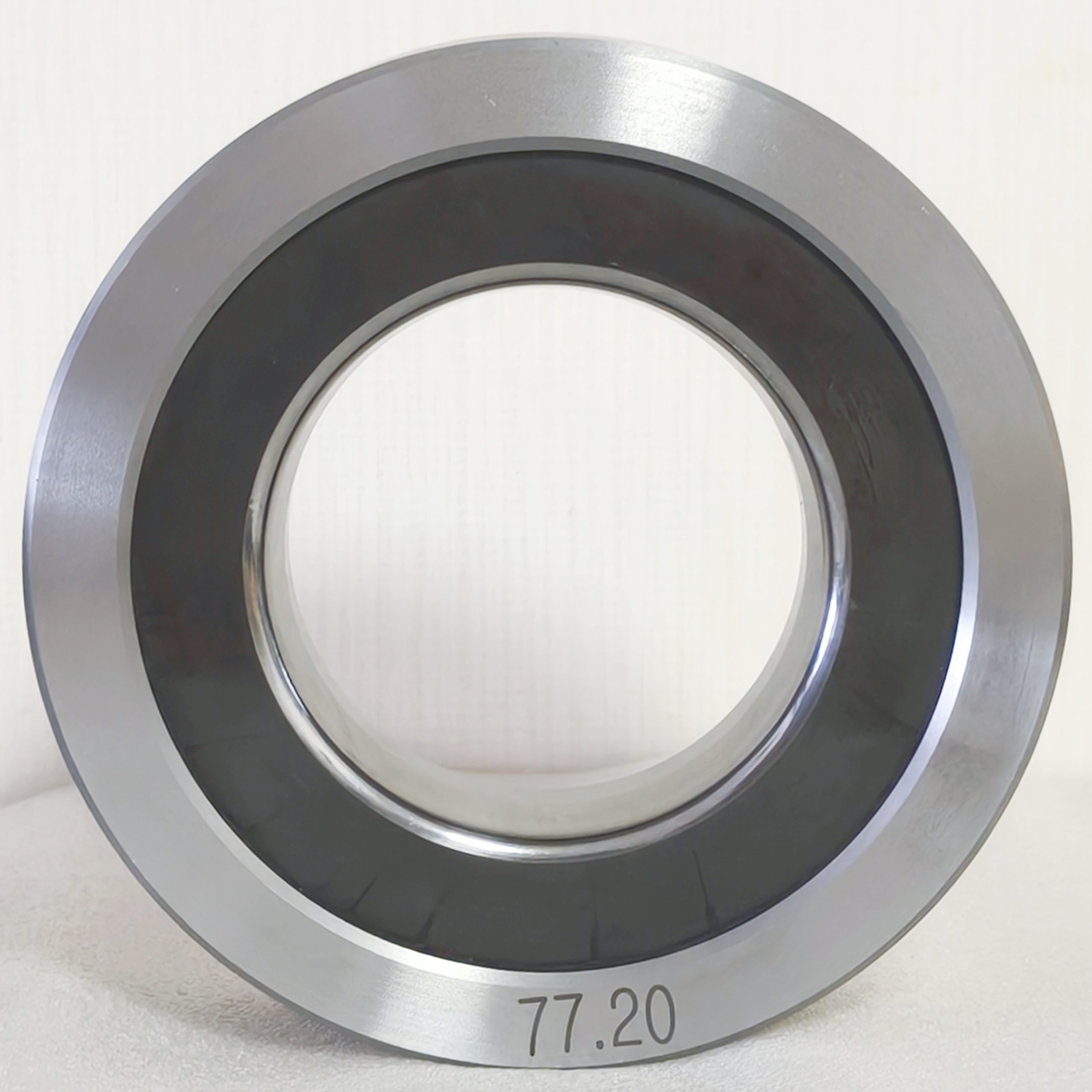

Big Carbide Dies 20.00mm~80.00mmFor wire dies 20.00mm~30.00mm, carbide die’s price is cheap.Carbide dies and nano dies can be made into diameters bigger than 30.00mm .

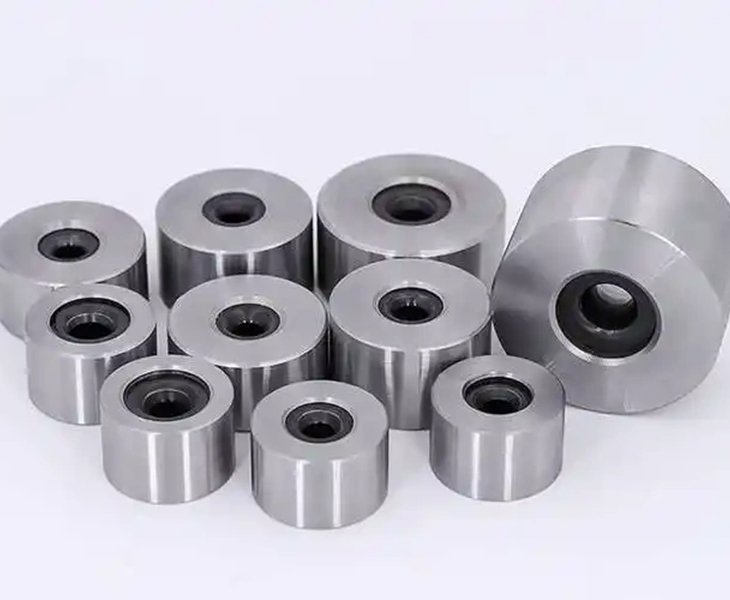

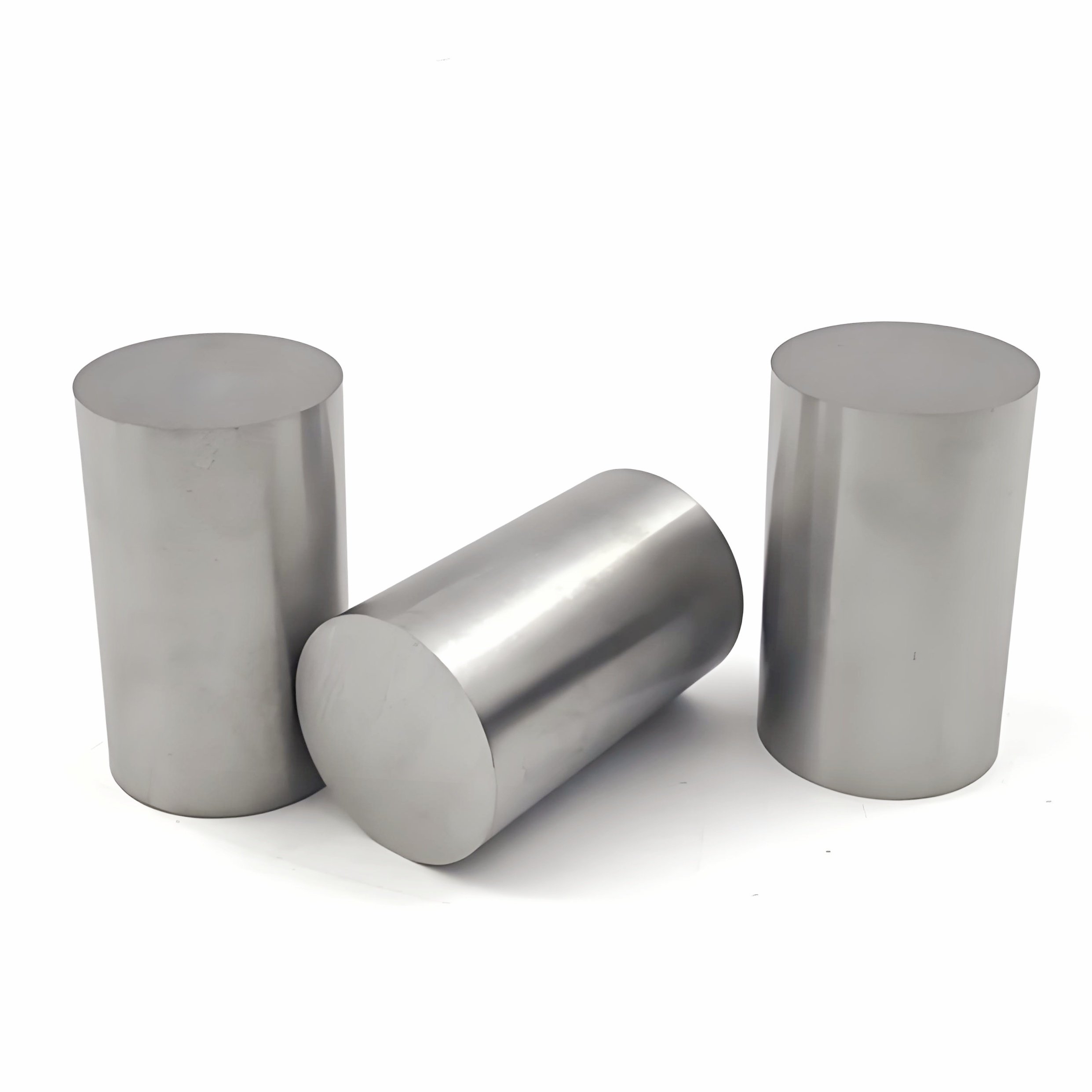

Rich Categories of Tungsten Carbides
According to the different components and proportion, there are many kinds of tungsten carbides with different performance. No matter YG, YT or YW serial, you can choose your favorite grade of tungsten carbide to make tungsten carbide wire drawing dies for your wires and tubes.
If need it, we can also suggest suitable tungsten carbide accoring to your carbide tools’ application and working environment.
Wide Diameters Scope
Compared with diamond dies, HG tungsten carbide wire drawing dies can be made in a wide range of diameters because there are big enough tungsten carbides. No matter small sizes, 0.30mm to 10.00mm for wires or big sizes, 11.00mm to 80,00mm for tubes & bars , you can get them here with ensured specifications and quality.
Big sizes tungsten carbide dies cost performance is excellent compared with other wire drawing dies, especially for diameters bigger than 10.00mm.

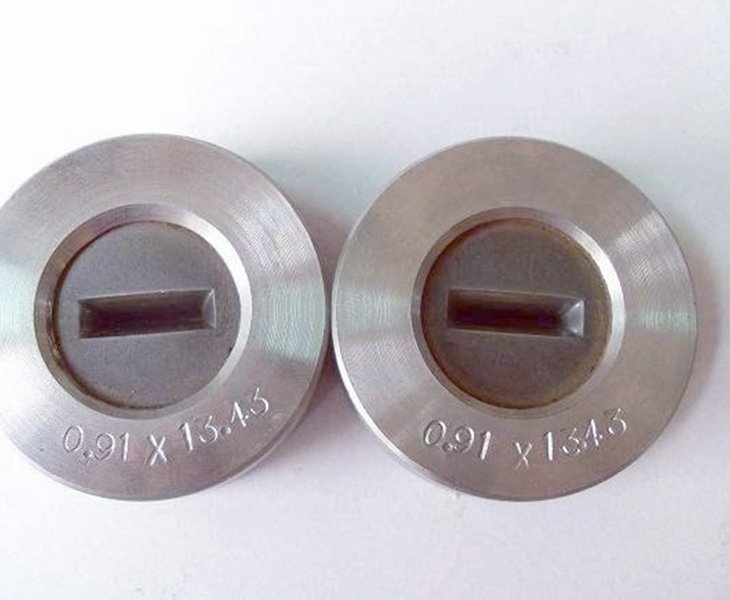

High Cost Performance
If your wires or tubes need to be produced in lower cost , HG tungsten carbide dies will be the first choice. Advantages of small sizes tungsten carbide dies may be not very evident, but the size is bigger, the price is more competitive compared with diamond dies.
Moreover, the wires’ surface and diameters are also ensured.

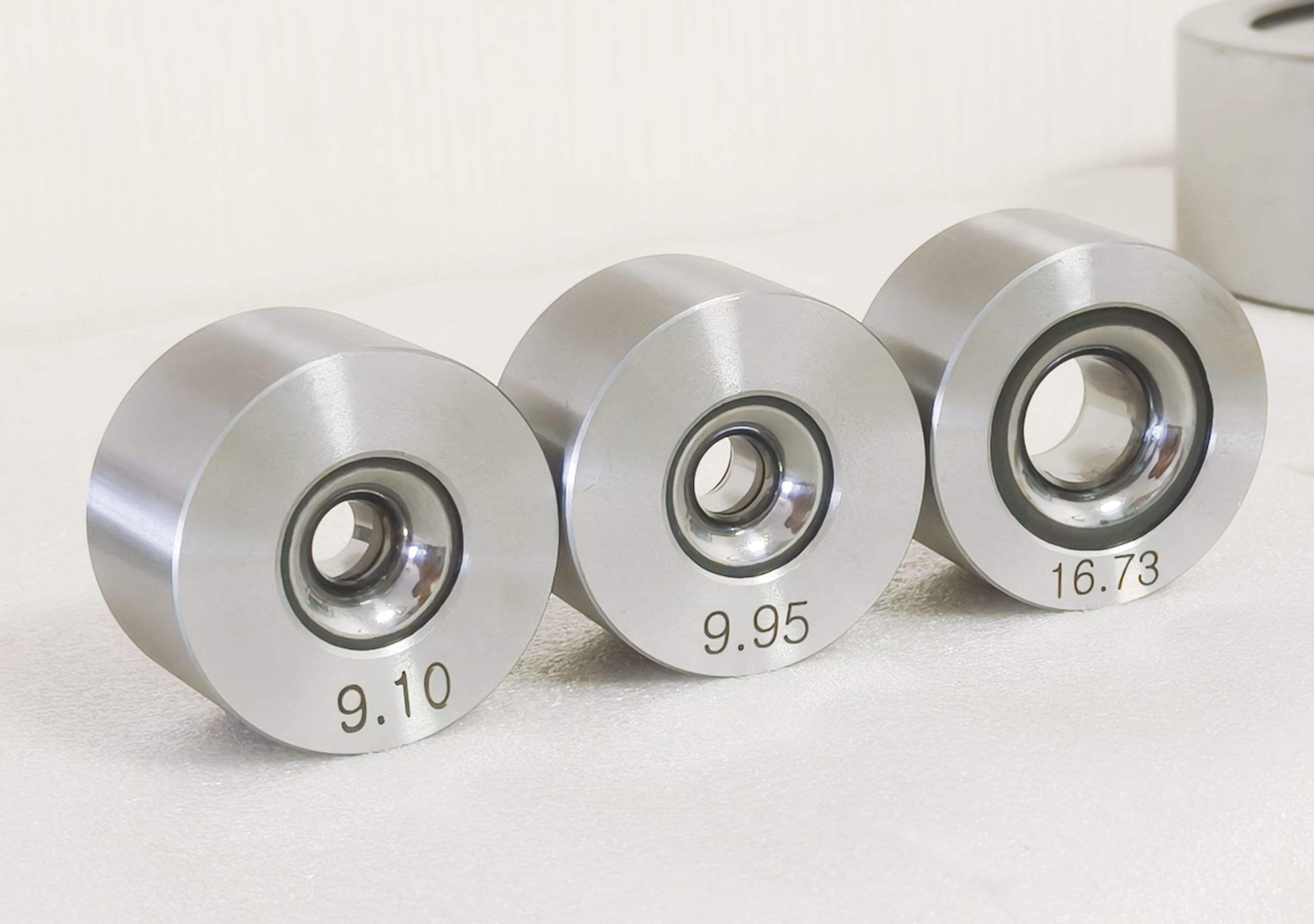

Exact Specifications
A reasonable inner geometry decides the tungsten carbide die’s life time and performance in wire drawing. Complete production processes and strict quality control ensure the accurate specifications of tungsten carbide dies. Diameters of your wires and tubes will also be as correct as possible.
Strict tolerance for each parameter of the tungsten carbide dies in reasonable scope can also be fulfilled in HG.

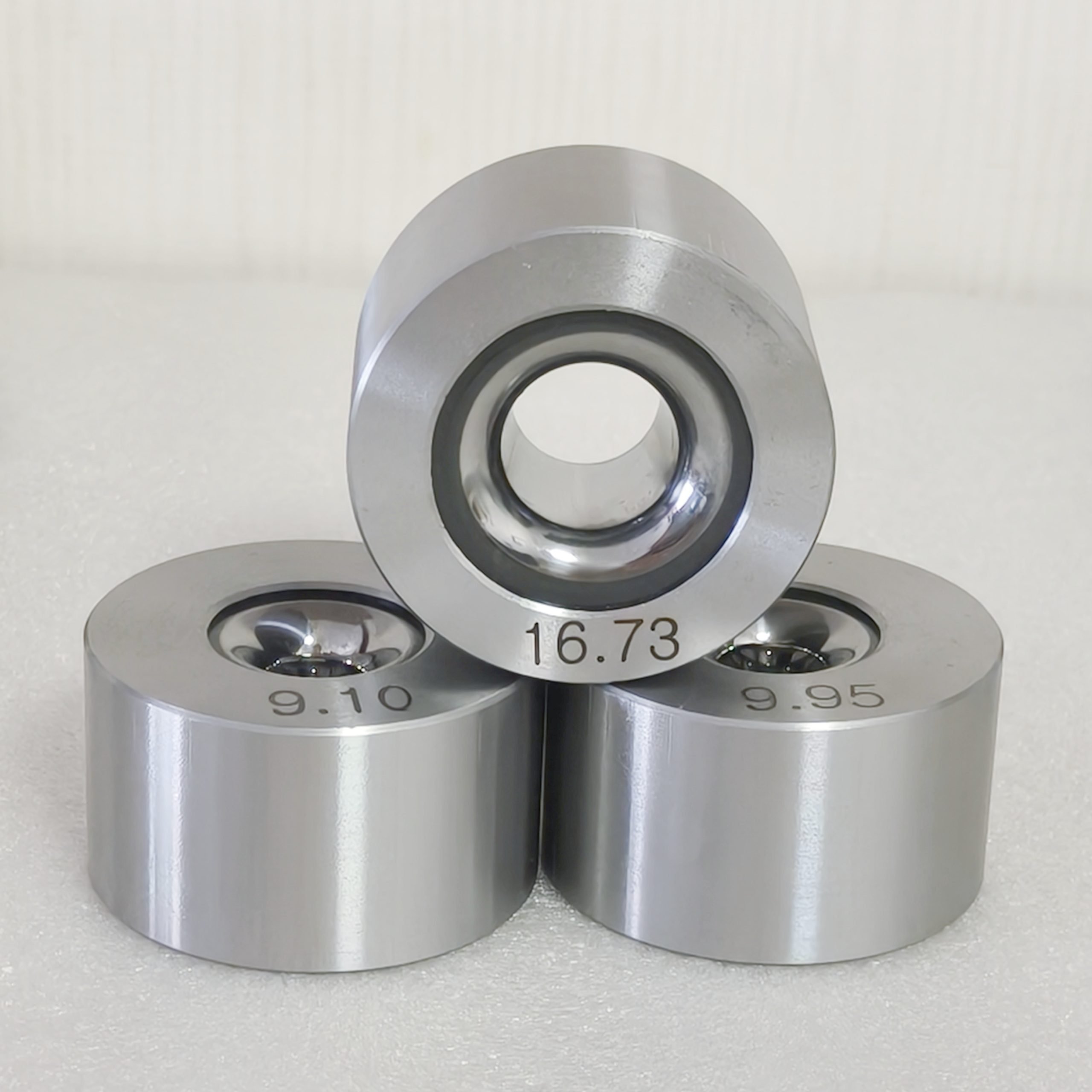

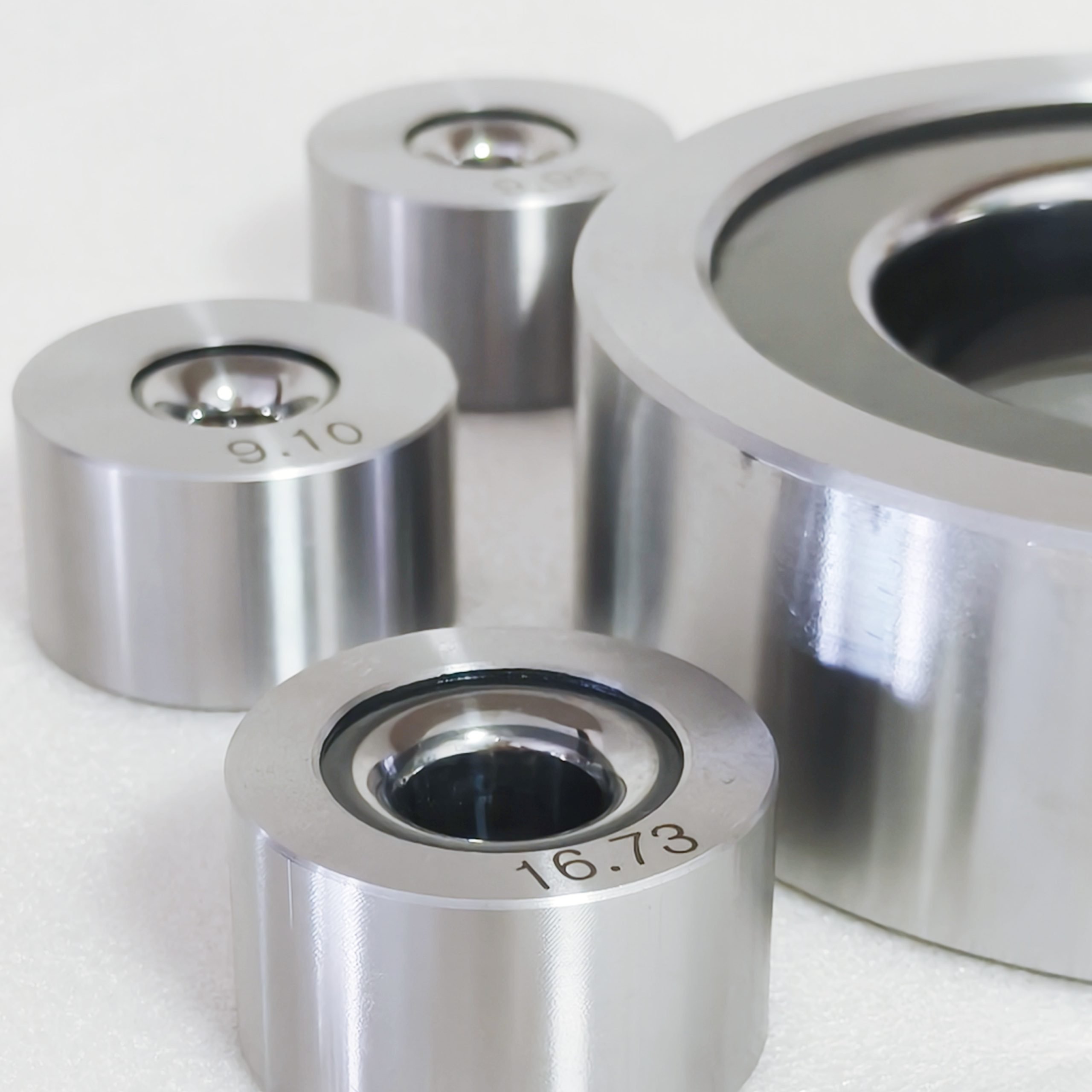

Get Your Customized Tungsten Carbide Dies Now !
As a wire drawing dies munafacturer with more than 20 years’ production experience, all your special requirements on tungsten carbide dies can me met in HG.
There are a serial of tungsten carbides with different composition here for your choice to make tungsten carbide dies for your wries, bars, tubes. The usually used brand are YG6, YG8, YG15, YT15 …..
Each specification of carbide dies is critical and some wires need dies with speical parameters. We are able to make them accoriding to your requirements.
Besides inner geometry, the shapes, sizes and materials of tungsten carbide wire drawing dies’s cases can also be customized to match with your drawing machines.
Some customers need tungsten carbide dies with their logo, brand name or company name. This service is also available in HG.
How to Get Wholesale Price for Tungsten Carbide Dies ?
Price of carbide dies are mainly affected by some factors . If you want a cheap price , please pay attention to following points.

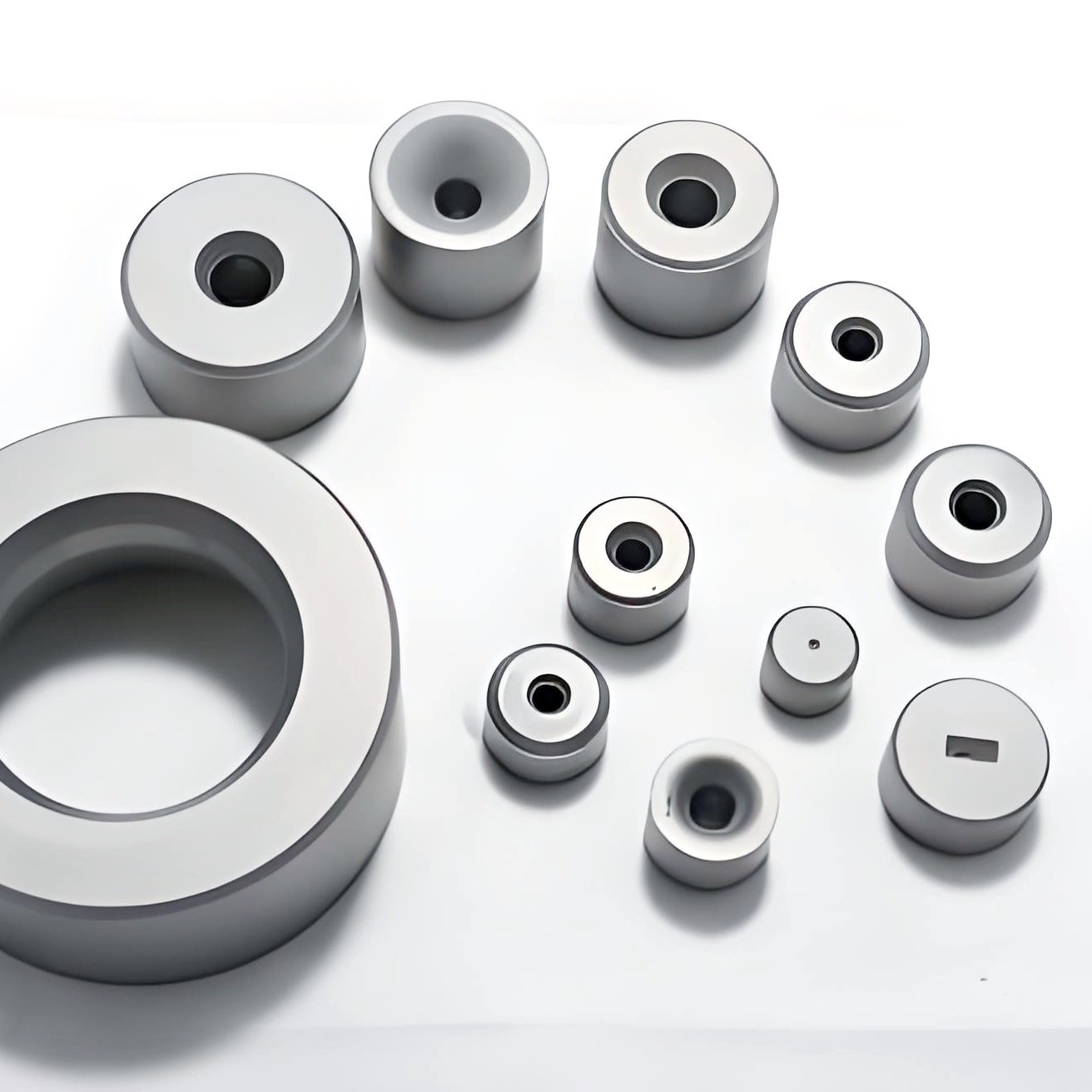

The bigger the order is , the cheaper the raw material is, especially the tungten carbide inserts. Large quantity of carbide dies usually can get a wholesale price.
There are many serials of tungsten carbides with different compistion and characteristics. Tungsten carbides price is different so tungsten carbide dies price is also different.

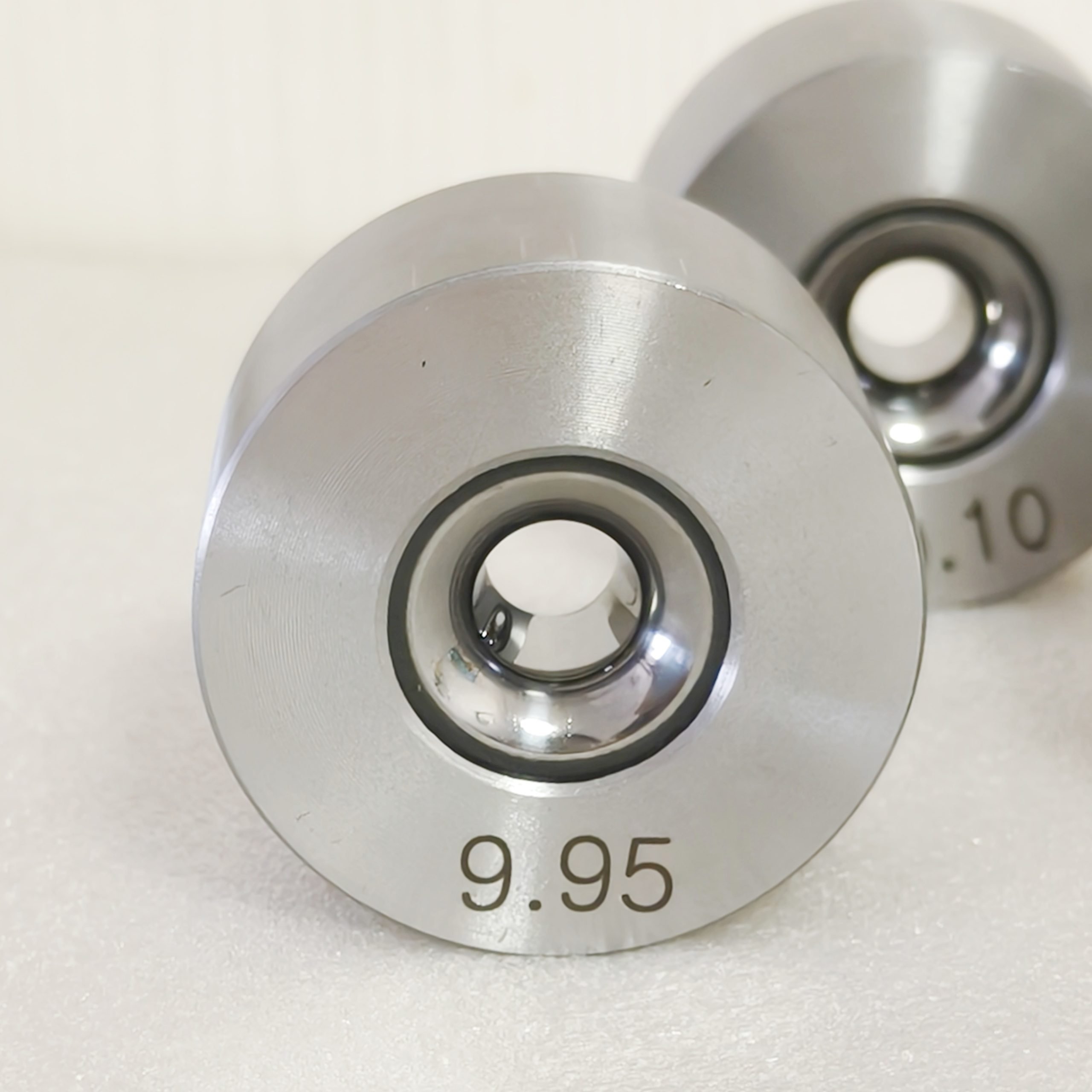

Tolerance can also affect the carbide dies price. If the tolerance is very strict, it will take much time to control and inspect the sizes so the production cost is high.
Finished carbide dies usually require inner hole polish like mirror. Some customers also purchase semi-finished carbide dies and polish by themselves so the price differs.
By now, the smallest size we are able to make is 0.3mm and the biggest size is 50.0mm.
There are many kinds of tungsten carbides in market. Please inform the applications and we can recommend the suitable brand for you.
Different tungsten carbides have different compositions. Besides tungsten carbide, there are also titanium,tantalum, cobalt etc, which decide their different performance.
Price of tungsten carbide dies are decided by the tungsten carbide and diameters of the dies.
Except quality ,tungsten carbide dies life time is upon the wire drawing environment. It’s hard to give a exact time.
For normal orders, the delivery time would be about 3 weeks after receiving formal orders.
What about the transport of tungsten carbide dies?
Generally speaking, if the order quanity is big, the carbide dies price wil be cheap. It’s also upon to your requirements on the dies.
HS Code of tungsten carbide dies is different in each country. In China, it is 8480419000.
Yes, our tungsten carbide drawing dies can also be used to draw bars in different materials and sizes.
Our factory manufacture many kinds of wire drawing dies and tungsten carbide die is one f our products.

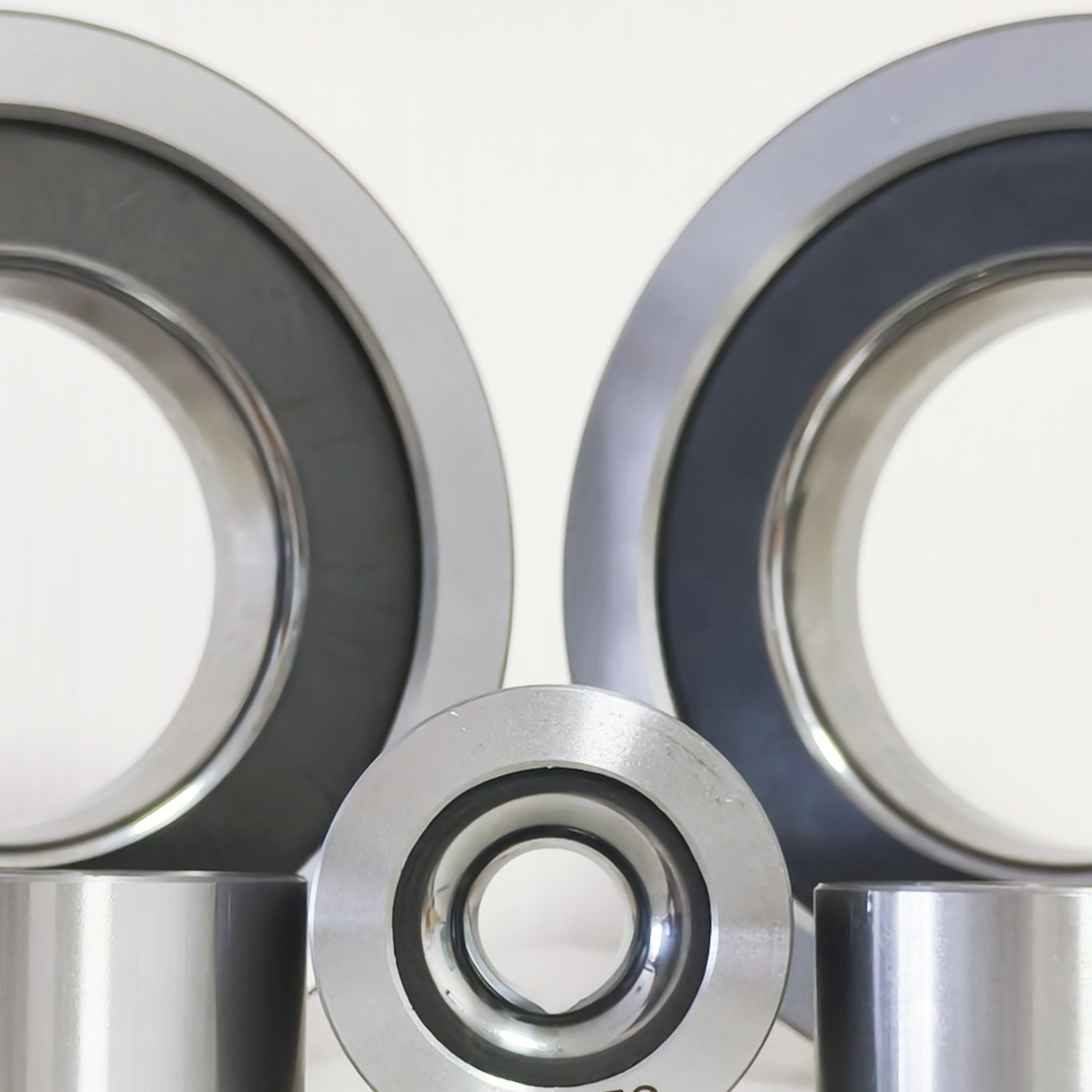

First of all, put the tungsten carbide dies into the grinding machine, then rotate it for 1-2 minutes to remove the moisture.
Next , apply the polishing paste, use the rotating disc to apply pressure for polishing until get a mirror like inner surface.
Firstly, choose suitable tungsten carbide inserts for tungsten carbide dies according to the diameters. Then case and drill a inner geometry combined with entrance, reduction angle, bearing, exit , finally polish and inspect until each specification is passed.
If you are only price oriented, tungsten carbide dies are better; If you consider cost performance, diamond dies will be good.
