Tube Drawing Dies with Long Service Time
Besides wires, many tubes also need to be drawn by big sizes drawing dies. Compared with wire drawing dies, tube drawing dies will bear much press in drawing process. So tube drawing dies must be made by bigger sizes of PCD blanks and reasonable calculated geometry to extent the service time.
Tube Drawing Dies in Different Materials and Shapes
Divided by materials, there are PCD and tungsten carbide tube drawing dies. Seeing from shapes, there are round and shaped tube drawing dies.

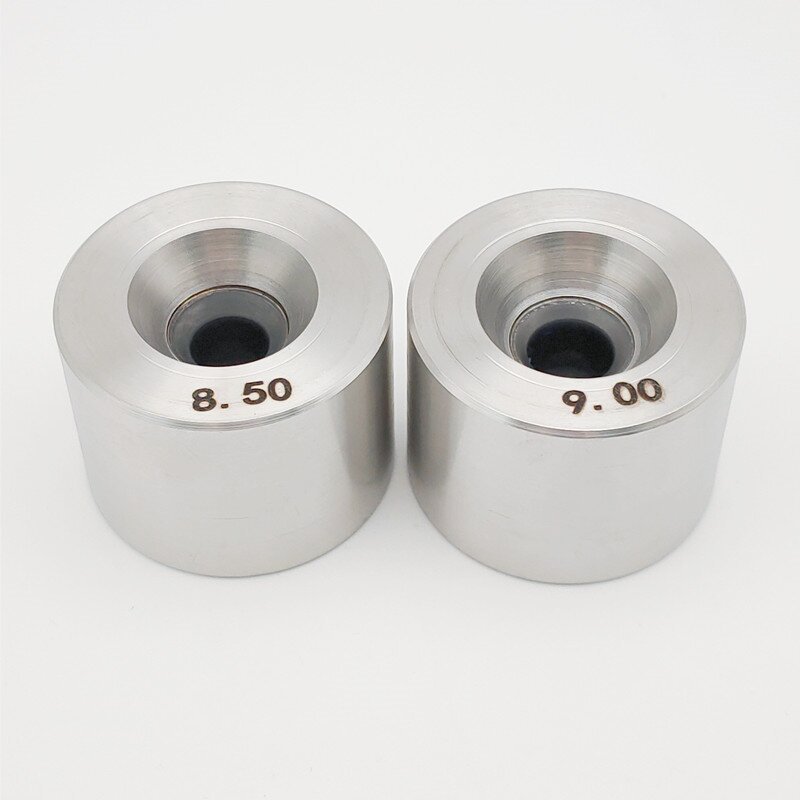

PCD Tube Drawing DiesPCD tube drawing dies, diameter 5.0mm – 25.0mm, are made by PCD blanks.

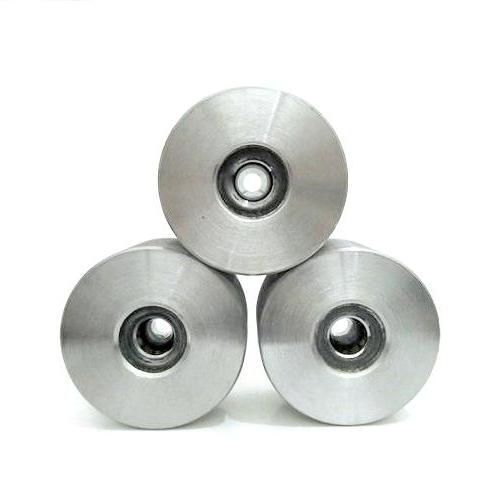

TC Tube Drawing DiesCompared with PCD tube dies, tungsten carbide tube drawing dies can be made in a wide diameter range, 5.0mm-60.0mm.

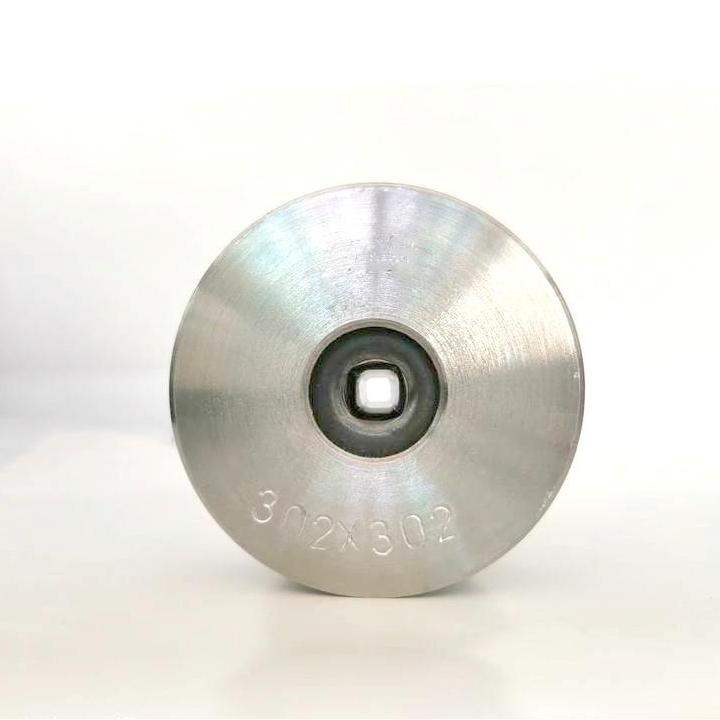

Round & Shaped Tube Drawing DiesRound tube drawing dies are common shape. HG are also able to make shaped tube dies.
Application of Tube Drawing Dies
Tube drawing dies for different materials need to have different parameters according to the property of this material.

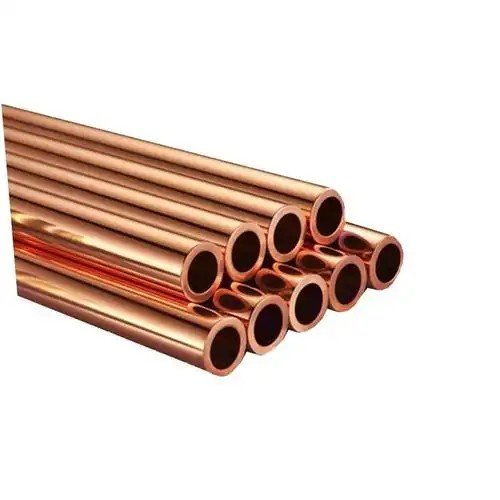

Tube Drawing Dies for Soft MetalsTube drawing dies for copper or aluminum tubes usually need 16°-18° reduction angle and 25%-30% bearing.

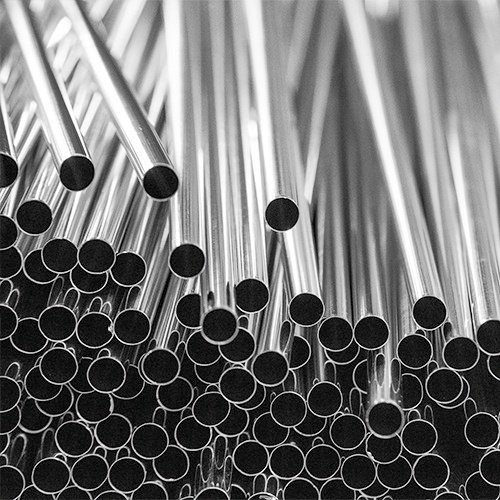

Tube Drawing Dies for Hard MetalsTube drawing dies for steel tubes usually have 12°-14° reduction angle and 30%-40% bearing. The PCD blanks also should be big enough.

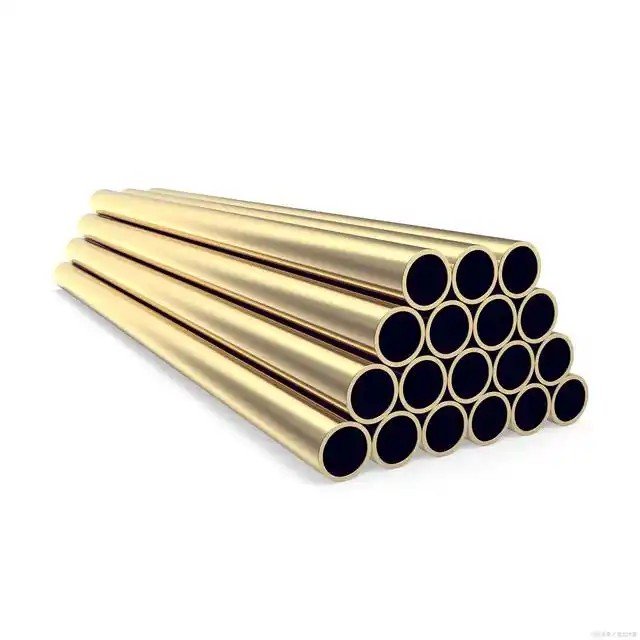

Tube Drawing Dies for AlloysParameters of tube drawing dies for alloys should be checked according to the specific hardness of this alloy tube.

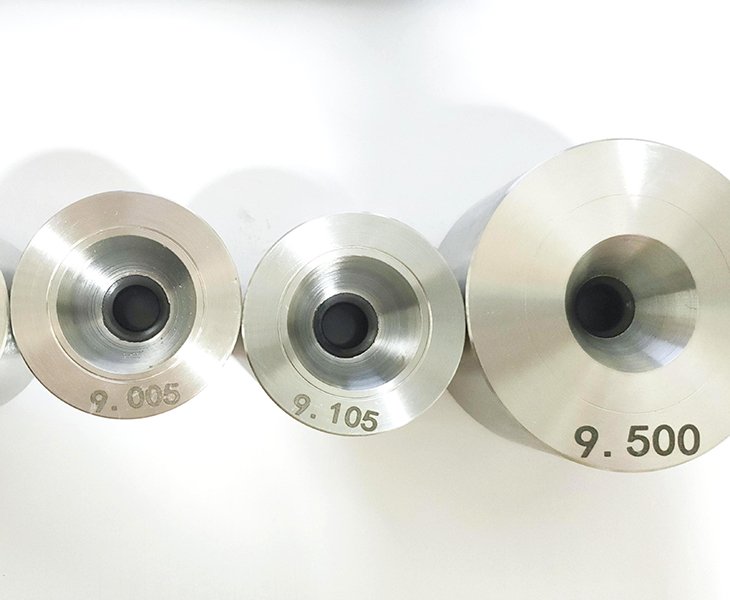

Wide Diameter Range of Tube Drawing Dies
The biggest PCD tube drawing dies we are able to make is 27.0mm and that for tungsten carbide die is 60.0mm. No matter your tube diameters are small or big , for soft or hard tubes, you can find satisfactory tube drawing dies in HG. Customized tube dies are also welcomed.

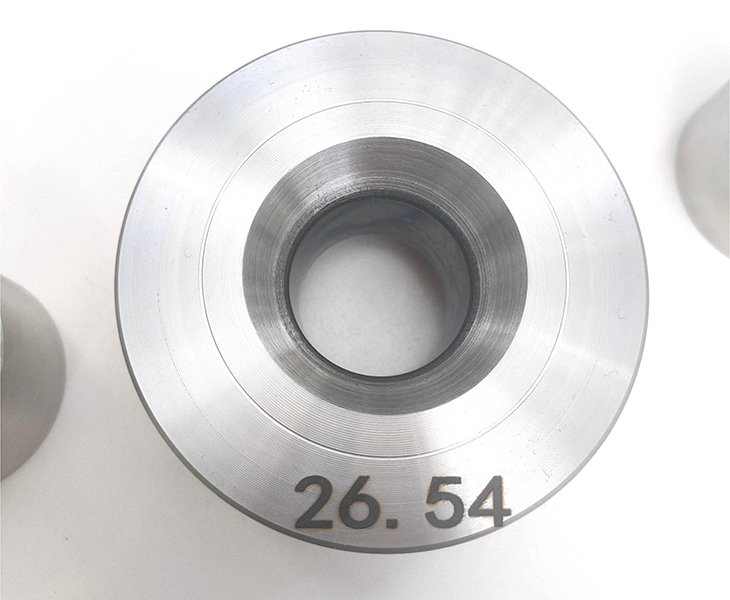

Specification Control of Tube Drawing Dies
Every specification of a tube drawing die is critical especially reduction part and diameter tolerance. Reduction area should be long enough to transform the tubes. Tolerance of a big tube drawing die is not easy to control but we are able to keep tolerance of a 26.54 mm die to be +0/-0.008mm to ensure the accuracy of your tube size.
Technical Support

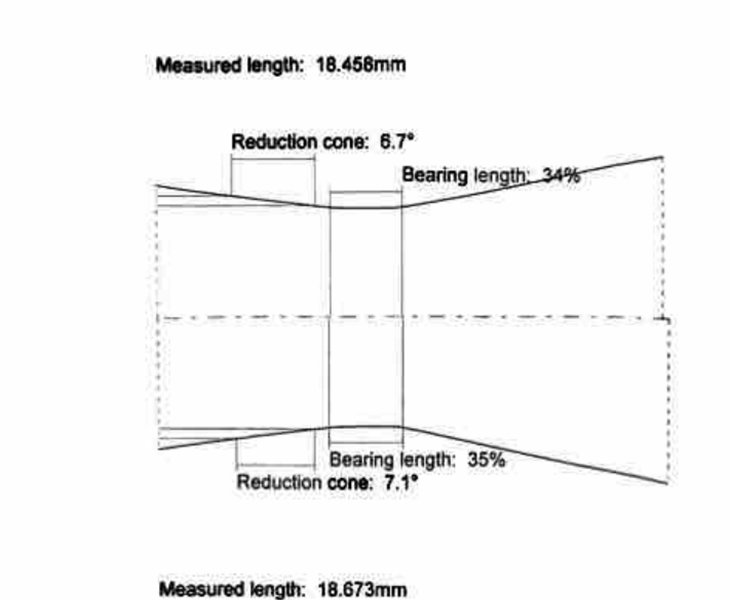

If you need technical support on tube drawing dies, HG are happy to provide. One of our customer used tungsten carbide tube drawing dies in the past want to change to PCD tube dies but they only have tungsten carbide die drawings. Our technicians redesigned the drawings according to customer’s requirements and produced correct dies for them.
Life time of tube drawing dies are decided by the tube materials and drawing circumstance.
Generally speaking, life time of a copper tube drawing PCD dies is several years but that of a steel drawing die will be shorter.

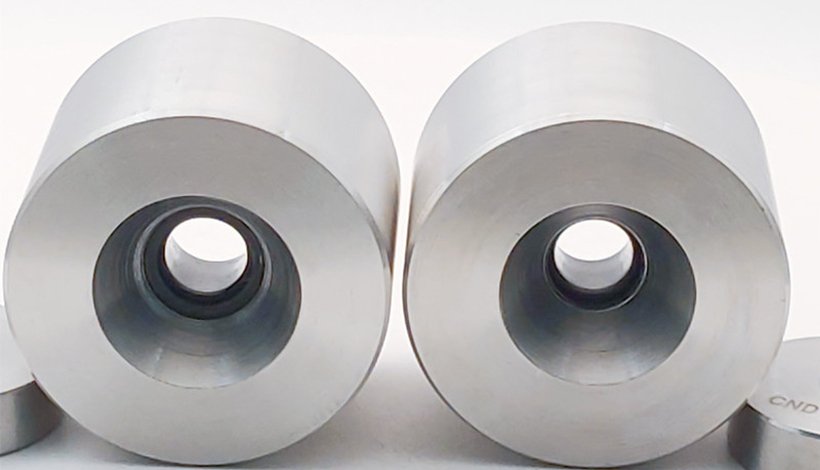

PCD tube dies have longer life time, better tube service but higher price. Restricted to PCD blanks’ size, the biggest PCD tube dies we are able to make is 27.0mm. Tungsten carbide tube dies can be made in bigger diameters to 60.0mm with lower price but their service time is not long.
Please tell us your requirements on the dies and tubes, say case sizes, inlet tube sizes, tolerance etc, then we will make new drawings of PCD tube dies for your reference.
It’s no problem. We are able to suggest like reduction angle, bearing for your reference.
Production time of a tube die will be not short because of big diameter. The estimated time is about 3 weeks.
Compared with PCD wire dies or tungsten carbide tube dies, price of tube drawing dies would be higher. But cost performance of PCD tube dies are much higher and we’ll keep the price to be competitive.
