What Is Stranding Die
Stranding die is a kind of wire die commonly used in wire industry to combine several wires or cables into a thicker wire or cable with designed diameters. After processed by stranding dies, the new wire or cable is solid and smooth.
Stranding Dies in Different Materials
Like drawing dies, there are also several materials of stranding dies below.

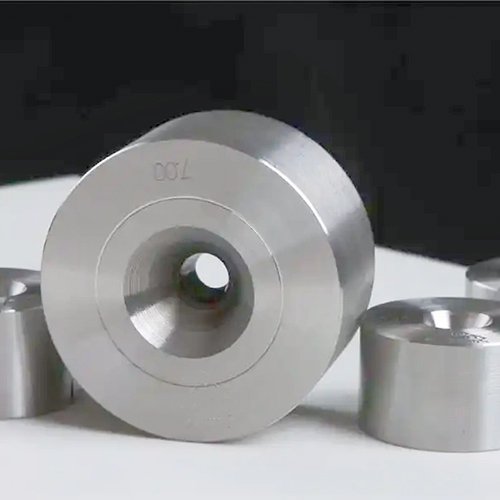

PCD Stranding DiesPCD stranding dies are made by PCD blanks with diameters 2.0mm- 25.0mm with long life span.

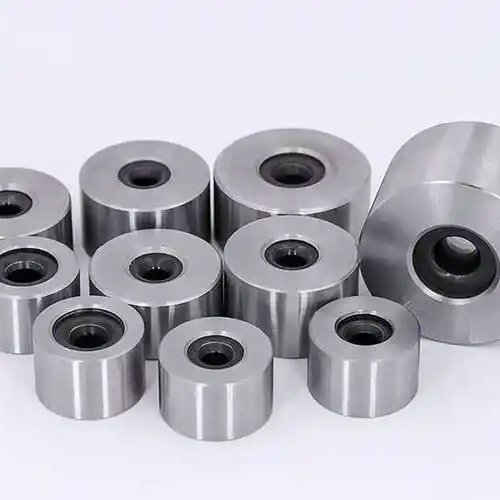

TC Stranding DiesDiameter span of tungsten carbide stranding dies is wider, from 3.0mm to 50.0mm .

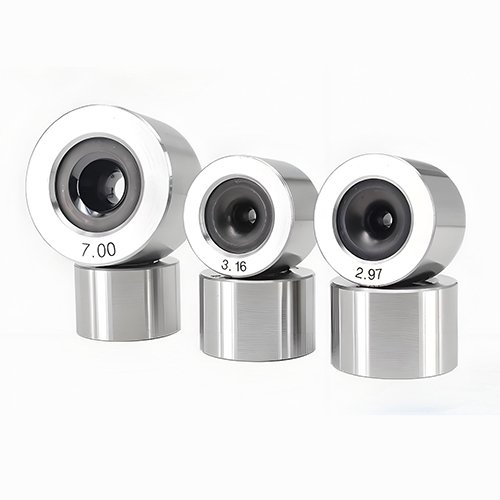

Nano Diamond Stranding DiesNano diamond stranding dies combining the advantages of PCD and tungsten carbide stranding dies, with diameters 5.0mm – 60.0mm.
Application Areas of Stranding Dies
Stranding dies can be used to strand various wires and cables for many areas.

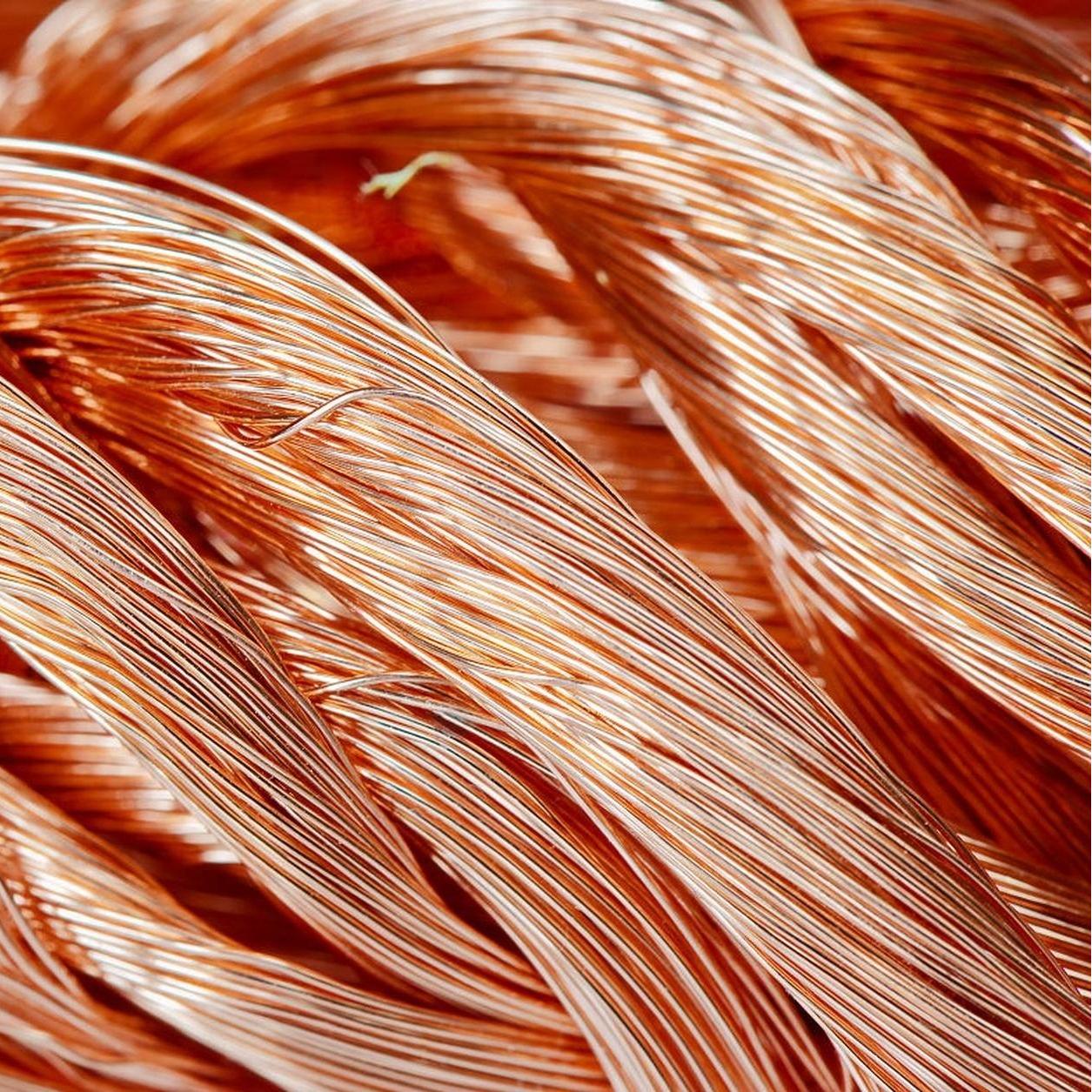

Stranding Dies for Non-ferrous WiresCopper , aluminum and their alloy wires, can all be processed by stranding dies.

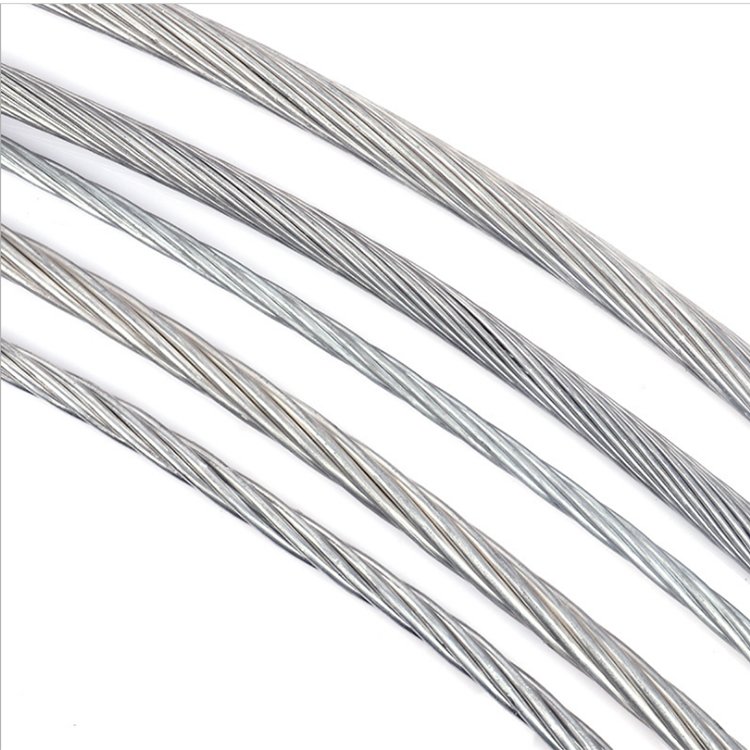

Stranding Dies for Ferrous Wires/ RodsStranding dies are also widely used for ferrous wires, say steel wires, stainless steels.
Stranding Dies for CablesStranding cables for many fields is also an important application of stranding dies.

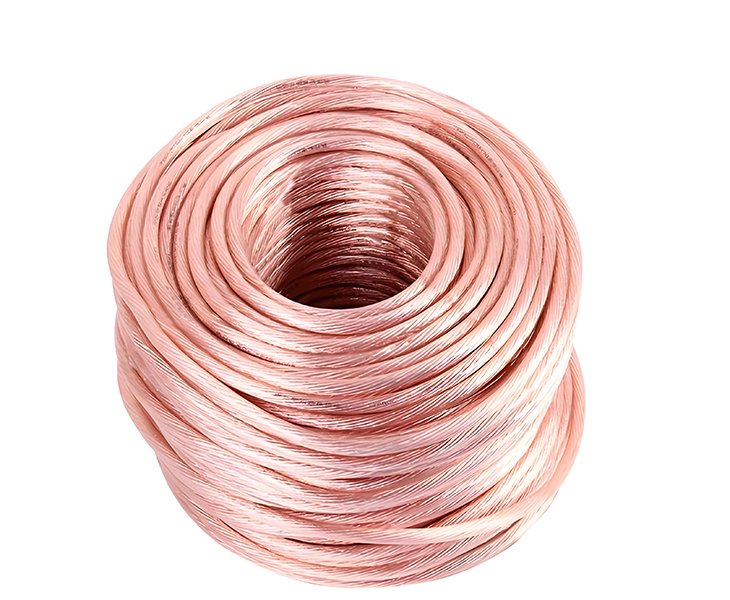

Good Surface Finish
With well calculated geometry and best raw materials, HG stranding dies always work successfully in stranding process. Going through transformation part, the wires or cables will become compact and smooth on surface to meet your production standard.

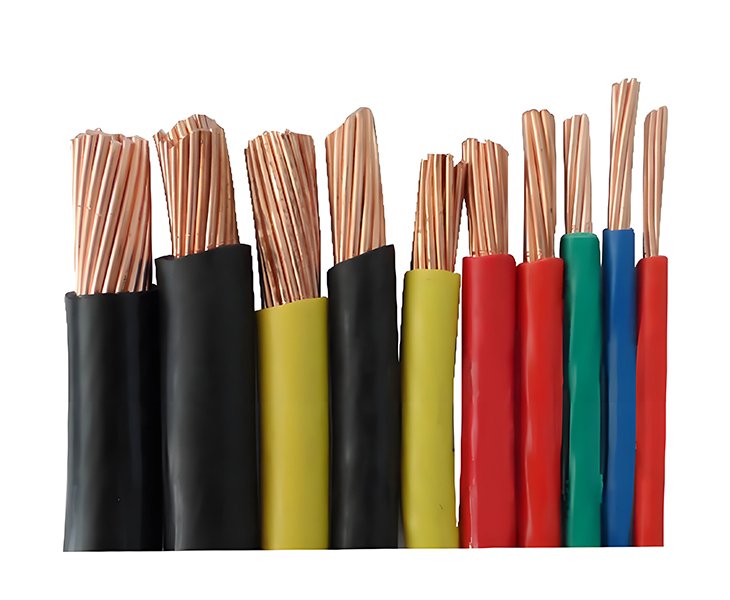

Precise Diameters of Wires and Cables

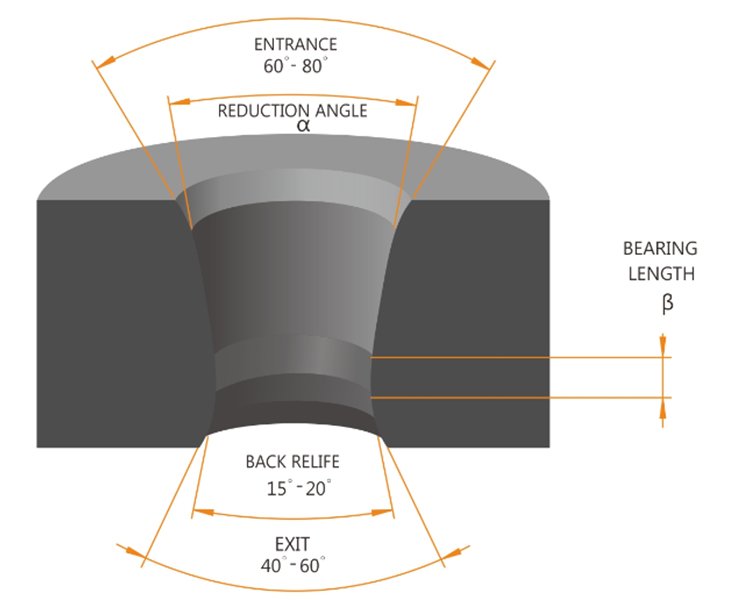

Reduction part of the stranding die combines several wires into one then bearing part fixes the new thick wire’s diameter. We control diameter tolerance of stranding dies strictly so the final sizes of your wires and cables will be precise within required tolerance.
Little Wire Breaking
With well blended parts, especially reduction area and bearing area, HG stranding die can keep working continually and there is almost no wire breaking. Your time for changing dies and adjusting machines is saved and the production becomes more efficient.
Seeing from their names, drawing dies are used to draw a single wire but stranding dies are used to strand several wires or cables into a thicker one.
Among several kinds of stranding dies, PCD dies have the longest life time, then tungsten carbide dies, finally nano dies.
Sure. We can make them according to your special requirements.
The dies are usually delivered by international express by air, say UPS, FedEx, DHL etc.
There are usually economical and priority service from above mentioned express. Generally speaking, shipping time of priority service is about 1 week and that of economical service is 10 days or more. Their freights are certainly different.
This is negotiable. And the dies’ price will change according to the freight bearer.
For new customers, prepaid payment is better for us to prepare raw materials.
